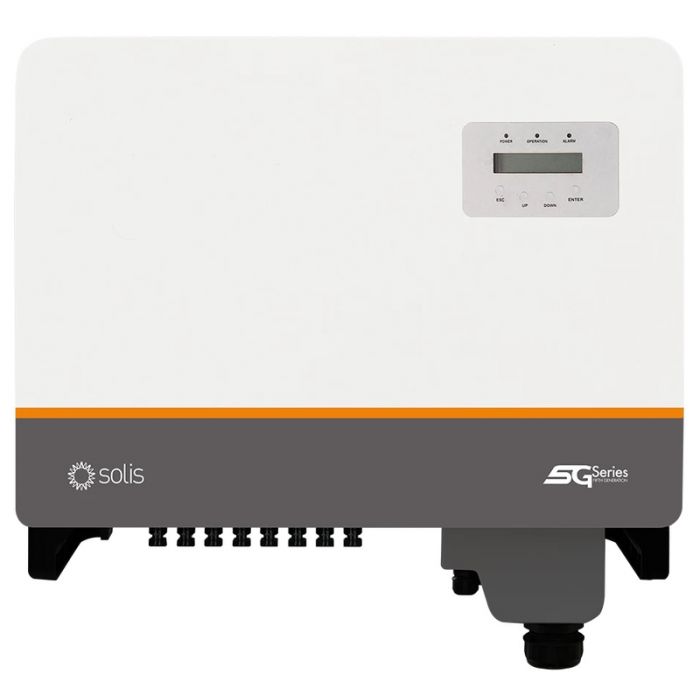

Solis S5 3 Phase Quad MPPT DC Gried-Tied Inverter - 40kW, White

Description

The Solis S5 3 Phase Quad MPPT DC Gried-Tied Inverter - 40kW, White is a high-performance three-phase grid-tied solar inverter designed for large-scale commercial and industrial applications. With a maximum efficiency of 99%, this inverter can effectively convert DC power from solar panels into AC power that can be used by homes or businesses.

Featuring four Maximum Power Point Trackers (MPPTs), the Solis 40kW S5 is capable of handling a wide range of solar panel configurations, making it ideal for installations with multiple arrays of panels facing different directions or with different tilt angles. The unit's advanced MPPT algorithm ensures maximum energy harvesting even in low-light conditions, helping to increase the overall energy yield of the system.

The Solis 40kW S5 also features a range of advanced protection features, including anti-islanding protection, overvoltage protection, short circuit protection, and over-temperature protection, ensuring that the inverter and the connected system operate safely and reliably under all conditions.

Additionally, the inverter's user-friendly design includes a large LCD display and an intuitive menu system, allowing users to easily configure and monitor the system's performance. With its high efficiency, multiple MPPTs, and advanced protection features, the Solis 40kW S5 is a powerful and reliable choice for large-scale commercial and industrial solar installations.

Features

• Max. efficiency of 98.7%
• Type-II over-voltage surge protection for both DC and AC
• Wide voltage range Ultra low start-up voltage of 180V and max PV input voltage of 1100V
• 32A input per MPPT, 16A input for each PV string
• Maximum AC output power of 44kW
• 4 MPPT design with precise MPPT algorithm, with 2 DC inputs per MPPT effectively reducing string mismatch
• Intelligent monitoring, Smart I-V Curve Diagnosis
• Integrated AFCI (DC arc-fault circuit protection)
• IP66 Rated
• DC reverse-polarity protection
