Solis S6-EH1P8K-L-PRO Series Hybrid Inverter

Manufacturer's Website

Description

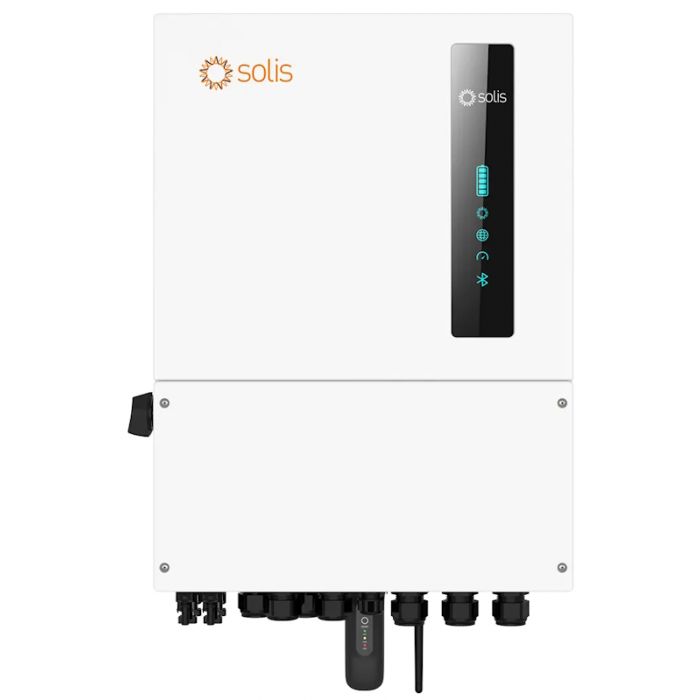

Introducing the Solis S6-EH1P8K-L-PRO Series Hybrid Inverter. The Solis S6-EH1P8K-L-PRO series hybrid inverters are designed for residential and small commercial photovoltaic (PV) energy storage systems. A key feature is their high MPPT (maximum power point tracking) current input of up to 32A, supporting larger solar panels like 182mm and 210mm panels. This allows for efficient energy capture from the sun, maximising the system's output. Furthermore, the system's six customisable charge and discharge time settings provide tailored control over battery charging and discharging, optimising battery performance and lifespan.

This series also excels in system scalability. The inverters support multiple parallel connections, allowing for the creation of single-phase or three-phase systems with a maximum power output of 48kW. This scalability is crucial for larger installations or systems that need to be expanded over time. The fast automatic UPS (uninterruptible power supply) switching time, less than 4 milliseconds, ensures a seamless transition to battery power during grid outages.

A notable advantage of the Solis S6-EH1P8K-L-PRO is its high charge-discharge current of 190A. This high current translates to a faster energy throughput, meaning the system can deliver power more quickly and efficiently. The combination of high current, fast switching, and customisable settings makes the system highly responsive to changing energy demands. The intelligent design and reliable performance make it a preferred choice for both residential and small commercial PV energy storage applications.

Features

• 330 v rated voltage
• 600 v max input
• Up to 32a of mppt
• Ac connection terminal block
• Display led indicator & bluetooth + app
• Communication rs485, can, optional: wi-fi, gprs, lan
• Mc4 plug (pv port) / terminal block (bat port) dc connection

Specifications
