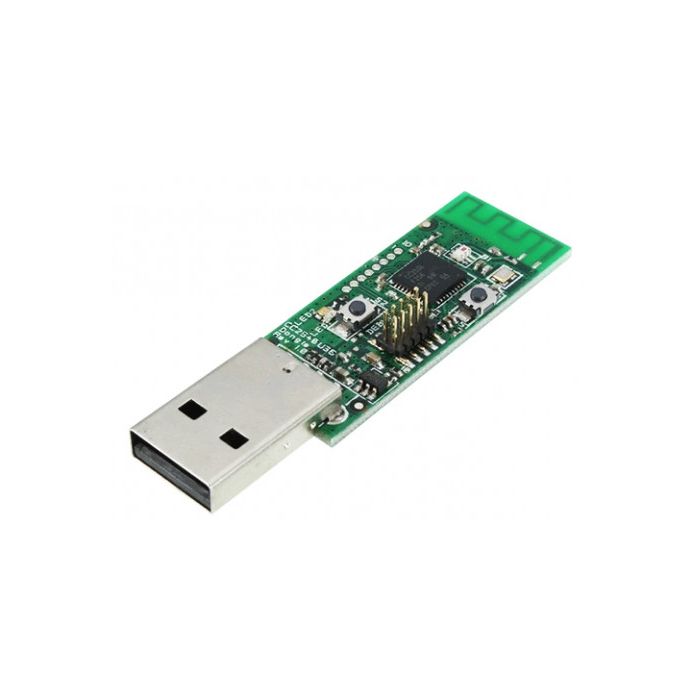

Sonoff ZigBee USB Dongle
R269.00
SKU
ZigBeeCC2531USBdong
IEEE 802.15.4 packet sniffer
Firmware library available on the web
Can be used as a reference module for prototyping of USB devices
Manufacturer's Website
Description
The Sonoff ZigBee USB Dongle is a fully operational USB device which provides a PC interface to IEEE802.15.4 / ZigBee applications. The dongle can be plugged directly into a computer and can be used as an IEEE 802.15.4 packet sniffer or for other purposes. With the CC2531 USB firmware library available on the web to develop software to utilize this part. The USB dongle can be used as a reference module for prototyping of USB devices and for testing the RF performance of CC2531 with a small size PCB antenna.
Features
- IEEE 802.15.4 packet sniffer
- Firmware library available on the web
- Can be used as a reference module for prototyping of USB devices
Specifications
| Classification | Evaluation Module Kit |
| RF Technology | ZigBee |
| Technology | IEEE 802.15.4 |
| Frequency | 2.4GHz |
| Input Voltage | 5V |
| Power Consumption | <20mA (receiving) <25mA (transmission) |
| Transmit Power | 0dBm (Nominal) |
| Receiver Sensitivity | -90dBm (Nominal) |
| Data Rate | 250Kbps |
| Antenna Impedance | 50 ohms |
| Frequency Error Tolerance | -50 KHz (Min.), 50 KHz (Max.) |
| Nominal Output Power | -3 dBm (Min.), 0 dBm (Typical) |
| EVM | 30% (Typical) |
| Operate Ambient Temperature Range | -20 - 75C |
| Storage Temperature Range | -40 - 125C |
| Dimensions | 63 x 17 x 9mm |
| Net Weight | 6g |
| Free Shipping | No |
|---|
