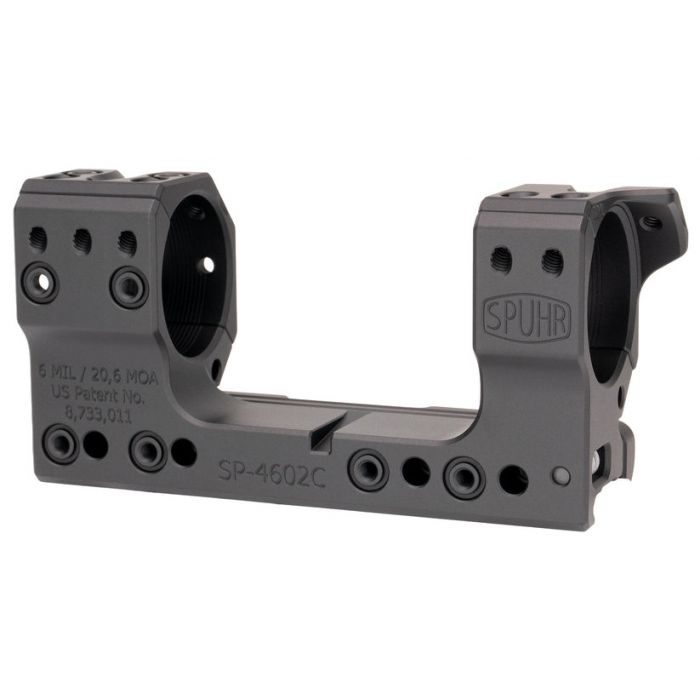

Spuhr 34mm Picatinny Scope Mount

Manufacturer's Website

Description

Introducing the Spuhr 34mm Picatinny Scope Mount. The Spuhr 34mm Picatinny Scope Mount is a robust optical mounting solution developed for demanding professional applications. The SP-4602CM was developed for the US CBP and features dual steel side clamps for increased durability, providing a strong and stable connection to compatible Picatinny rails. The mount body and top covers are machined from billet 7000-series aluminium and finished with a hardcoat anodized surface for added protection. The side clamps are manufactured from hardened steel and Cerakoted, while the fasteners feature a zinc-nickel coating for improved corrosion resistance. The screws are also supplied pre-waxed from the factory to help support consistent torque values during installation.

The mount uses 34 mm diagonally cut rings, a design intended to improve visibility and access around the elevation and windage turrets of the installed riflescope. An integrated bubble level is built into the mount body, providing a convenient visual reference to help identify and correct unwanted rifle cant. Seven Spuhr Interfaces are incorporated into the mount, allowing compatible accessories to be attached directly to the mounting system. This makes the SP-4602CM particularly suitable for advanced configurations involving night vision equipment and other supported optical accessories. The mount features a 6 MIL / 20.6 MOA tilt and a mounting height of approximately 38 mm (1.5"). The main body measures approximately 120 mm (4.72") in length, with an overall length of approximately 130 mm (5.12"). Total weight is around 260 g (9.2 oz), offering a strong and rigid platform without excessive bulk.

A manual and Spuhr wedge levelling key are supplied with the mount to assist with installation and proper optic alignment. The combination of hardened steel clamps, billet aluminium construction and carefully treated fasteners is designed to provide durability and consistent performance in demanding environments. Manufactured by Spuhr, the 34mm Picatinny Scope Mount combines rugged construction, seven accessory interfaces, an integrated bubble level and precise 6 MIL inclination in a professional-grade mounting system. It is intended for compatible Picatinny-equipped platforms and is not compatible with the SAKO S20 or rifles fitted with two-piece rails.

Features

• 34mm Ring Diameter
• Durable Billet 7000 series aluminium construction
• 38 mm/1.5 Height
• Used for Night Vision Equipment
• Zinc-nickel coated Torx 20 ring screws

Specifications
