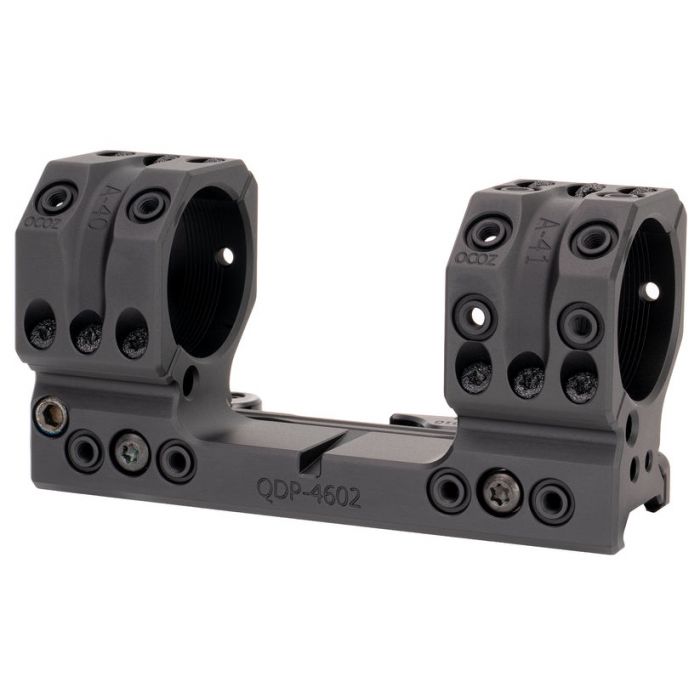

Spuhr 34mm Quick Detach Cantilever Scope Mount

Manufacturer's Website

Description

Introducing the Spuhr 34mm Quick Detach Cantilever Scope Mount. The Spuhr 34mm Quick Detach Cantilever Scope Mount forms part of the IDEAL SCOPE MOUNT SYSTEM range and is designed to provide a strong, precise and highly configurable mounting platform for compatible optics. Featuring 34 mm rings and a quick-detach clamping system, the mount is particularly suited to setups incorporating night vision equipment and other advanced optical accessories. Machined from durable billet 7000-series aluminium, the mount combines rigidity with a relatively lightweight construction. All aluminium components are hardcoat anodized for added surface protection, while the Torx 20 ring screws feature a zinc-nickel coating for corrosion resistance. The screws are also supplied pre-waxed from the factory to help support consistent torque during installation.

The mount features diagonally cut 34 mm rings, a design intended to improve visibility and access around the elevation and windage turrets of the installed riflescope. An integrated bubble level is positioned in the rear plane of the mount body, providing a convenient visual reference for identifying unwanted cant in the rifle and optic setup. Its quick-detach levers can be adjusted for tension, allowing the mounting system to be configured for a secure fit on a compatible rail. This provides a practical solution for users who may need to remove and reinstall their optic assembly while maintaining a compact and robust mounting arrangement.

The mount incorporates eight sets of Spuhr accessory interfaces, allowing compatible accessories from the wider Spuhr system to be attached in multiple positions. With support for more than 40 different accessories across the system, these interfaces provide considerable flexibility when configuring optics, night vision devices and related equipment. The Spuhr 34mm Quick Detach Cantilever Scope Mount features a 6 MIL / 20.6 MOA tilt and a mounting height of approximately 38 mm (1.5"). It measures approximately 121 mm (4.76") in length and weighs around 267 g (9.4 oz), providing a solid yet manageable platform for demanding optical setups. Manufactured by Spuhr, this 34 mm quick-detach mount combines billet aluminium construction, adjustable QD levers, diagonally cut rings, an integrated bubble level and multiple accessory interfaces in a versatile mounting system. A manual and Spuhr wedge levelling key are included, while the mount is not compatible with the SAKO S20 or rifles fitted with two-piece rails.

Features

• 34mm Ring Diameter
• Durable Billet 7000 series aluminium construction
• 38 mm/1.5 Height
• Quick detachable system
• Used for Night Vision Equipment
• Zinc-nickel coated Torx 20 ring screws
