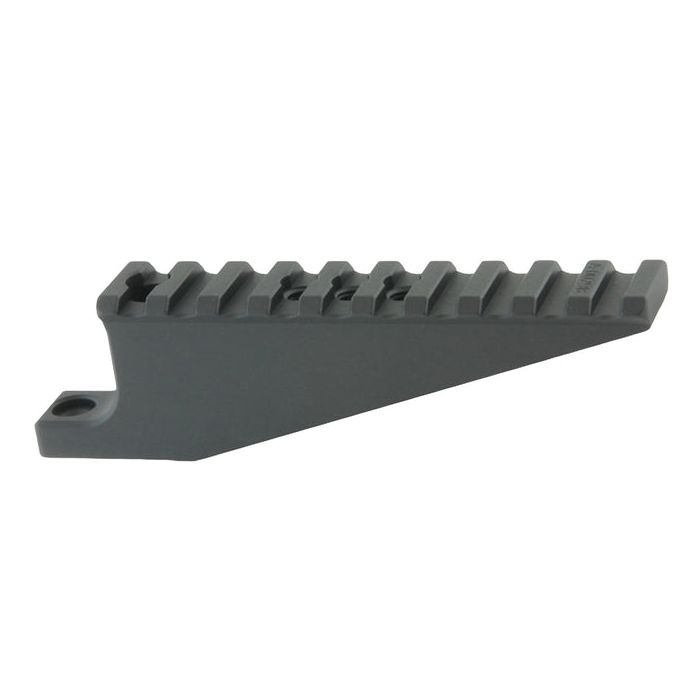

Spuhr A-0029B Wilcox RAPTAR High Adapter

Manufacturer's Website

Description

Introducing the Spuhr A-0029B Wilcox RAPTAR High Adapter. The Spuhr A-0029B Wilcox RAPTAR High Adapter is a lightweight mounting interface designed for attaching compatible laser rangefinders and related devices to a Spuhr Interface, including those used on the Ideal Scope Mount System (ISMS) series. It is particularly suited to Wilcox RAPTAR, RAPTAR-S and RAPTAR Lite ES units, as well as the SilencerCo RADIUS and similar devices. Manufactured from durable 7075 T651 aluminium, the A-0029B combines low weight with a rigid and robust construction. The aluminium body is hardcoat anodized for added surface protection and durability, helping it withstand regular use while maintaining a clean and compact profile.

The adapter provides approximately 104 mm (4.09") of Picatinny mounting length and has a total overall length of approximately 123 mm (4.86"). It measures around 21.2 mm (0.84") in width and 35 mm (1.38") in height, giving it a raised profile intended for compatible rangefinding equipment and associated mounting configurations. The A-0029B is primarily designed for use with the integrated 1/4 UNC mounting screw found on compatible RAPTAR units. Wilcox RAPTAR, RAPTAR-S and RAPTAR Lite ES devices can also be mounted using a compatible Wilcox 57204G03-B Picatinny Riser, providing additional flexibility depending on the selected equipment setup.

The adapter attaches directly to a compatible Spuhr Interface using two M4x10 Torx 20 screws. This provides a secure connection between the adapter and host mounting system while retaining compatibility with the broader Spuhr accessory ecosystem. With a weight of approximately 59 g (2.1 oz), the Spuhr A-0029B adds relatively little mass to the overall setup despite its elevated mounting height and 104 mm Picatinny section. Manufactured by Spuhr, it combines hardcoat-anodized 7075 T651 aluminium construction, versatile mounting options and a dedicated high-profile design for Wilcox RAPTAR-series devices, SilencerCo RADIUS units and similar laser rangefinders.

Features

• 35 mm/1.38 height
• 104 mm/4.09 Picatinny Length
• Durable 7075 T651 aluminium and is hardcoat anodized construction
• Recommended fit Wilcox RAPTAR, RAPTAR-S, RAPTAR Lite ES, SilencerCo RADIUS, or similar Laser Range Finders
