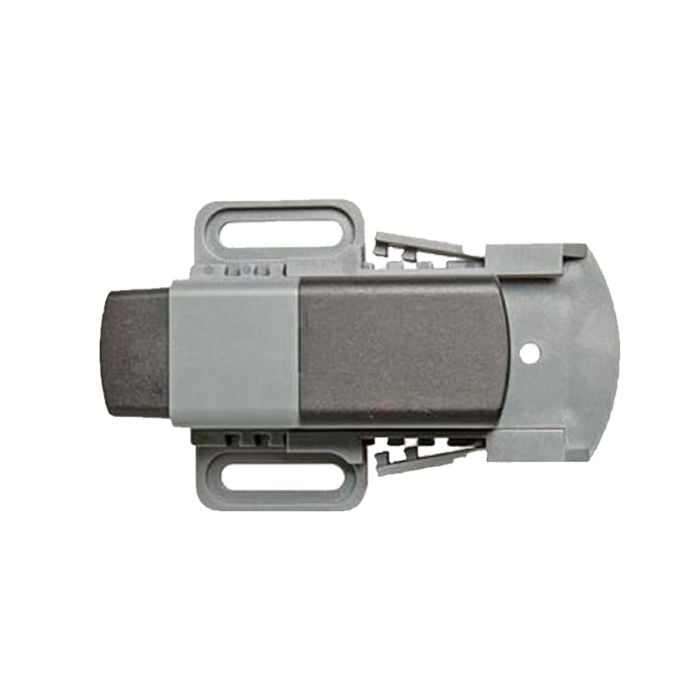

Stego DS 013 Door Switch - 250V AC, 8 (1.5) A
R569.00
SKU
1350000
Adjustable positioning without tools
High switching capacity
Strain relief
Different cladding diameters
Description
The Stego DS 013 Door Switch - 250V AC, 8 (1.5) A is a door switch that monitors the position of cabinet doors and is. For example, it can be used for(CO) can be used as a normally closed and/or normally open contact.
The wide mechanical adjustment range of the door switch DS 013 offers versatile application areas: the housing is adjustable within a 35 mm range, while the screw flange with a slotted hole offers an additional 21 mm. The switching travel of the switch itself is another 8 mm. Adjustable can be made without any positioning tools, making it easy to adjust and install.
Features
- Adjustable positioning without tools
- High switching capacity
- Strain relief
- Different cladding diameters
- Suitable for lamp LED 025
Specifications
| Max. Switching Capacity | 250VAC, 8 (1.5) A |
| Service Life | VDE > 10,000 Cycles, UL > 6,000 Cycles |
| Connection | 4-pole clamp with strain relief, clamping torque 0.5Nm max. |
| Mounting | screw fixing (M5) |
| Casing | plastic according to UL94 V-0, grey/black |
| Dimensions | 87 x 64 x 30mm |
| Weight Approx. | 50g |
| Fitting Position | variable |
| Operating/Storage Temperature | -20 to +85 Degrees Celsius (-4 to +185 F) |
| Operating/Storage Humidity | max. 90% RH (non-condensing) |
| Protection Type | IP20 |
| Approvals | VDE, EAC UL intended |
| Suitable Wire | Cable round, stranded wire (with wire end ferrule) 0.75mm to 1mm |
| Free Shipping | No |
|---|
