Stego KTO 011 Thermostat - N/C, 32 C to +140 F, 10 A, 250 VAC, DIN MT
R329.00
SKU
01140900
Large setting range
Small size
Simple to mount
High switching performance
Manufacturer's Website
Description

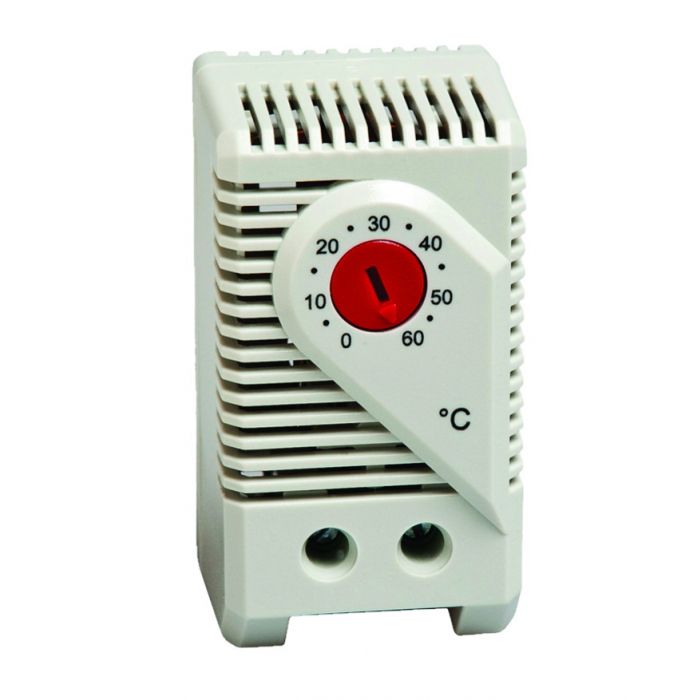

The Stego KTO 011 Thermostat - N/C, 32 C to +140 F, 10 A, 250 VAC, DIN MT is a mechanical thermostat contact breaker that is a regulator used to control heaters. KTO 011 Thermostat (NC) contact breaker is for regulating heaters. The contact opens when temperature is rising. 32 C to +140 F, N/C.
Features
- Large setting range
- Small size
- Simple to mount
- High switching performance
Specifications
| Switch Temperature Difference | 0 to +60 °C |
| Setting Range | 7 K (4 K tolerance) |
| Sensor Element | Thermostatic Bimetal |
| Contact Type | snap-action contact |
| Service Life | > 100,000 cycles |
| Max. Operating Voltage | AC 250 V (VDE), AC 120 V (UL) |
| Max. Inrush Current | AC 16 A for 10 sec. |
| Connection | 2-pole terminal, clamping torque 0.5 Nm max.: rigid wire 2.5 mm2 (AWG 14), stranded wire 1.5 mm2 (AWG 16) |
| Mounting | clip for 35 mm DIN rail, EN 60715 |
| Casing | plastic according to UL94 V-0, light grey |
| Dimensions | 60 x 33 x 43 mm |
| Weight Approx. | 40 g |
| Fitting Position | variable |
| Operating/Storage Temperature | -45 to +80 C (-49 to +176 F) |
| Operating/Storage Humidity Max. | 90 % RH (non-condensing) |
| Protection Type | IP20 |
| Free Shipping | No |
|---|
