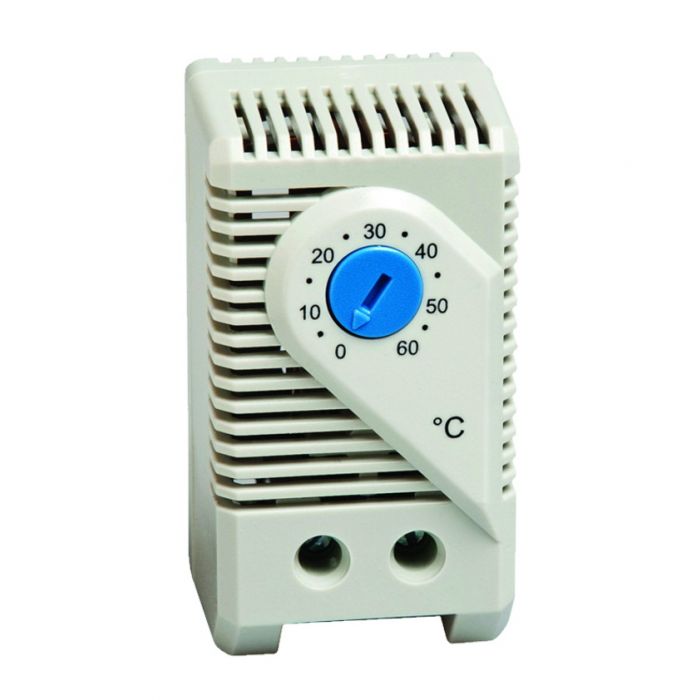

Stego KTS 011 Thermostat - N/O, 20 C to +80 C, 10 A, 250 VAC, DIN MNT
R339.00
SKU
01158000
Large setting range
Small size
Simple to mount
High switching performance
Description
The Stego KTS 011 Thermostat - N/O, 20 C to +80 C, 10 A, 250 VAC, DIN MNT is a mechanical thermostat WITH two state regulators used for coolers, filter fans or signal devices.
KTS 011 Thermostat (normally open) contact maker for regulating of filter fans and heat exchangers or for switching signal devises when temperature limit has been exceeded. The contact closes when temperature is rising.
Features
- Large setting range
- Small size
- Simple to mount
- High switching performance
Specifications
| Setting Range | +20 to 80 C |
| Switch Temperature Difference | 7 K (4 K tolerance) |
| Sensor Element | Thermostatic bimetal |
| Contact Type | Snap-action contact |
| Service Life | > 100,000 cycles |
| Max. Operating Voltage | AC 250 V (VDE), AC 120 V (UL) |
| Max. Inrush Current | AC 16 A for 10 sec. |
| Connection | 2-pole terminal, clamping torque 0.5 Nm max.: rigid wire 2.5 mm2 (AWG 14), stranded wire1 1.5 mm2 (AWG 16) |
| Mounting | Clip for 35 mm DIN rail, EN 60715) |
| Casing | Plastic according to UL94 V-0, light grey) |
| Dimensions | 60 x 33 x 43 mm |
| Weight Approx. | 40 g |
| Fitting Position | Variable |
| Operating/Storage Temperature | -45 to +80 Degrees Celsius |
| Operating/Storage Humidity Max. | 90 % RH (non-condensing) ) |
| Protection Type | IP20 |
| Free Shipping | No |
|---|
