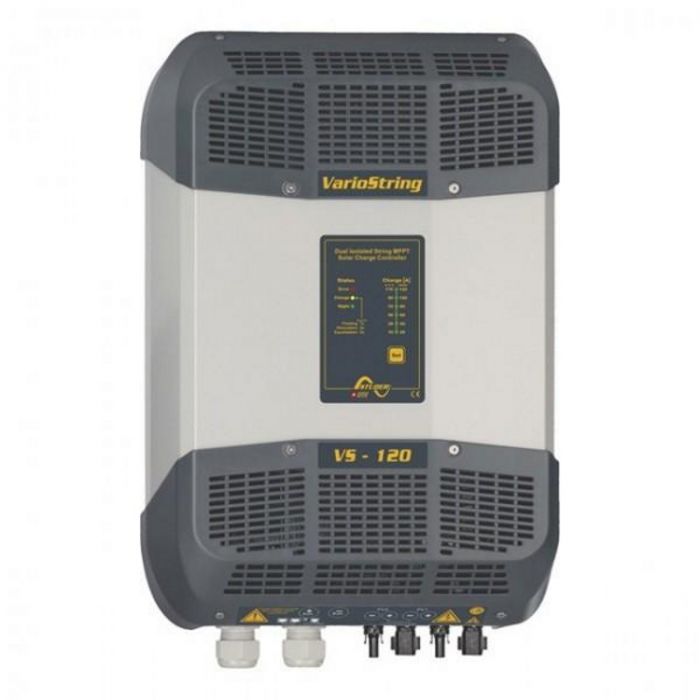

Studer VS-120 VarioString MPPT Charger - 120A, 48V, IP20

Confirm Availability
In stock
Shipping restrictions apply.
Safe & Secure Shopping
Satisfaction Guaranteed
Manufacturer's Website



The Studer VS-120 VarioString MPPT Charger - 120A, 48V, IP20 is recommended for PV capacities up to 7kWp, and charges the battery with a maximum current of 120A. Its two MPPT inputs offer very flexible connections of the PV modules. The inputs can be connected in parallel, in series or independently. With the inputs connected in series, the string of PV modules can have a voltage up to 900V, all this without special tools and with reusable connectors.

The battery management parameters can be adjusted on the inside of the device. On the outside, an LED display indicates the battery charge current and state of the VS-120.

Given the specific system needs, several accessories can be added such as the Remote Control and Programming Centre RCC-02/03, a module with 2 auxiliary contacts ARM-02, a battery temperature sensor BTS-01, a battery status processor BSP-500/1200, or one of the communication sets Xcom-LAN/GSM/SMS.

The VS-120 has a remote entry which provides the option to control the system from several parameters that can be programmed with the RCC-02/03.

The combination of the VS-120 and Xtender series is the ideal solution for hybrid systems with several power sources such as solar PV, genset.



  • Reduces Balance of System costs (eliminates expensive wiring for parallel strings, saving wires, connectors, junction boxes, fuses, space, time, etc.)
  • Safe, simple and trouble free connection with SUNCLIX (Phoenix Contact tool free) PV connector
  • Safety, guaranteed, thanks to the reinforced isolation between the PV generator and battery and between the two PV inputs of the VS-120. This allows for independent earthing of the battery and/or solar modules.
  • World champion for efficiency in isolated converter with >98 % conversion efficiency
  • 7kW per unit and up to 15 units in parallel: 105kW
  • 4 step charger fully programmable for longer battery life
  • 9 LEDs to monitor status and current
  • Full display, configuration and data acquisition with RCC-02/03 and/or via the internet with the Xcom LAN/Xcom-GSM or via SMS with Xcom-SMS



Recommended PV Power (W) 7000 W
Battery Voltage Unom (V) 48V
PV Voltage U (V) 100-600 parallel / 200-900 series
Max Charge Current Imax (A) 120A
Maximum Efficiency > 98 %
Dimensions H x W x L (mm) 133 x 322 x 466mm
Weight 7.5 kg
Operating Ambient Temperature Range -20 to 55 C
Operating Voltage Range 38 - 68 V
Charging Stages 4 stages: Bulk, Absorption, Float, Equalization
