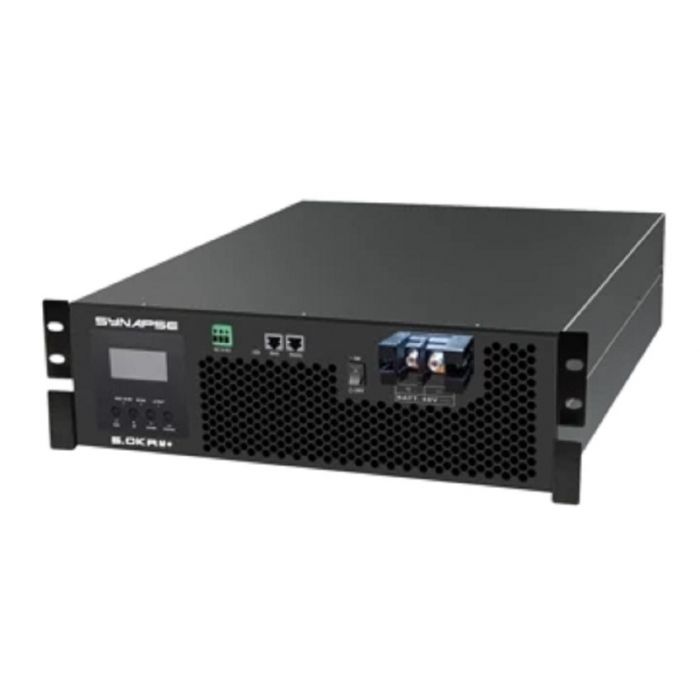

Synapse Offgrid Inverter - 5kW 48V DC, 80A MPPT, Rack Mount
R16,399.00
SKU
SYNAPSE50KRM
Pure sine wave inverter
Battery equalization function
Optimizes battery performance
Shipping restrictions apply.
Description
The Synapse Offgrid Inverter - 5kW 48V DC, 80A MPPT, Rack Mount comes equipped with a unique operating system and a built-in MPPT for solar applications. In addition, there is an optional AC input that will allow a battery bank to be charged by a grid or generator connection.
These units are not capable of feeding back into the grid. Perfect for a start-up system to reduce the effects of load shedding
Features
- Pure sine wave inverter
- Battery equalization function
- Optimizes battery performance
- Assembled with an internal anti-dust kit for harsh environments
- Rack mounted design for convenient mounting
Specifications
| Brand | Synapse |
| Technical Specifications | |
| Rated Power | 5000W |
| Voltage | 230V Ac |
| Surge Power | 5000Va |
| Efficiency | 90-93% |
| Transfer Time | 20Ms For Home Appliances |
| Waveform | Pure Sine Wave |
| Battery | |
| Battery Voltage | 48V Dc |
| Floating Charge Voltage | 54V Dc |
| Overcharge Protection | 66V Dc |
| Solar Charger & Ac Charger | |
| Max Pv Array Power | 4000W |
| Max Pv Array Voc | 145V Dc |
| Mppt Range @ Operating Voltage | 60 115V Dc |
| Max Solar Charger Current | 80A |
| Max Ac Charger | 60A |
| Physical | |
| Dimensions(D X W X H) | 100 X 300 X 440Mm Rack Mounted |
| Weight | 13.5Kgs |
| Communication Interface | Usb / Rs232 / Rs485 / Bluetooth / Dry-Contact |
| Environment 5% To 95% Relative Humidity (Non-Condensing) | |
| Operating Temperature | -10C To 55C |
| Storage Temperature | -15C To 60C |
| Free Shipping | No |
|---|
