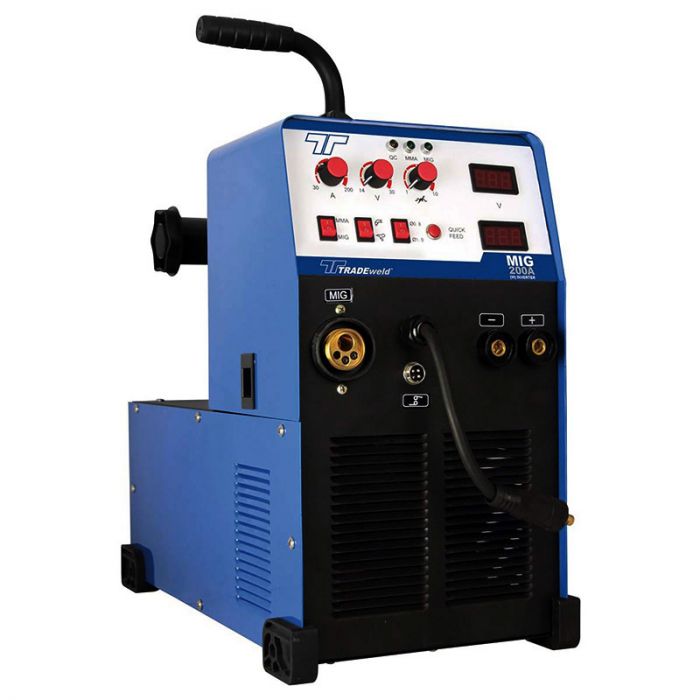

TradeWeld MIG 200 W Multi-Process Welder - 200Amp, 220V
R16,679.00
SKU
EWM0136I
MMA, MIG welding Stepless voltage control DC current output
Shipping restrictions apply.
Description
The TradeWeld MIG 200 W Multi-Process Welder - 200Amp, 220V is a robust, versatile DC multi-process welding inverter, ideal for all your home DIY or workshop MMA, MIG, TIG DC welding needs. This model is ideal for light duty aluminium welding, especially with a wire spool gun, and other metal fabrication work. It features a digital display, DC current output, stepless voltage control and wire feed adjustment, and an internal 2 wheel wire feed system with a maximum of 15kgs of MIG wire.
This multi-process welder is manufactured to the highest standards using cutting edge Mosfet technology. It is a highly adjustable and versatile welder, with adjustment dials for Amps, Voltage, and rocker switches for MMA/MIG, wire diameter and wire feed system adjustment.
Includes a welding cable set, and MIG 15 torch.
Features
- Digital display
- Dc current output
- Suitable for MMA, MIG welding
- Stepless voltage control
- Stepless wire feed adjustment
- Internal 2 wheel wire feed system
- Less power consumption
- Robust construction
- Ideal for fabrication work
- Thermal protection
- Fan cooled forced ventilation
- Max 15kg MIG wire
- Use with or without gas
Specifications
| Process | MMA, MIG, TIG DC |
| Solid Wire (mm) | 0.8 - 1.0 |
| Maximum Steel Thickness (mm) | 0.8 - 8 |
| Flux Cored Wire (mm) | 0.8 - 1.0 |
| Output Amps | MIG 30 - 200 / MMA-TIG 30 -160 |
| Duty Cycle (percent) | 60 |
| OCV | MIG 15.5 - 24 / MMA-TIG 30 - 160 |
| Input Volts | 220 |
| Input Amps | 37.4 |
| Cooling | Fan |
| IP | 21 |
| Dimensions (mm) | 470 x 340 x 770 |
| Net Weight (Kg) | 18.2 |
| Free Shipping | No |
|---|
