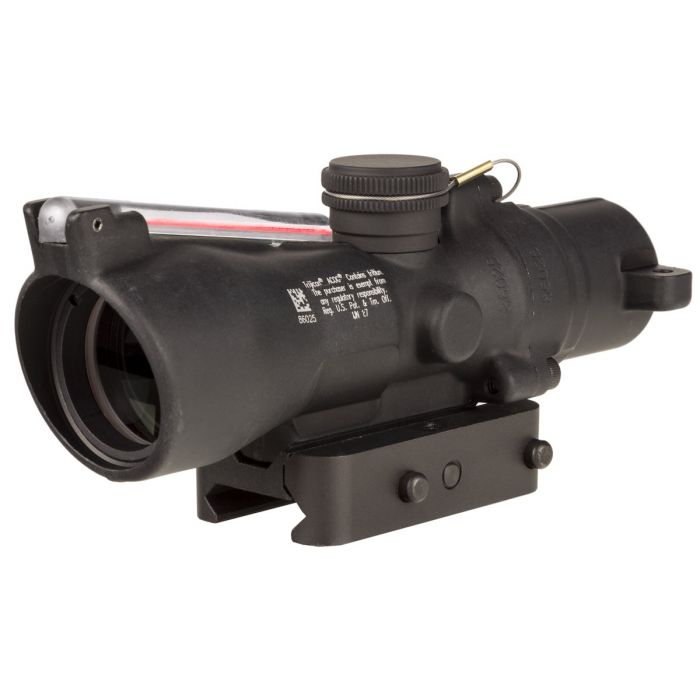

The Trijicon 3x24 ACOG Dual Illuminated Compact Scope - Low Height, Red Horseshoe/Dot .223/55gr. Ballistic Reticle is a fixed magnification riflescope with an illuminated reticle pattern for use in any lighting conditions. Dual illumination provides two sources of battery-free illumination, fibre optics and tritium. The fibre optics use ambient light to automatically adjust the brightness level and contrast of the reticle to available light conditions.
The tritium-phosphor lamp glows in low-light conditions. The ACOG body is designed to be extremely rugged and reliable. The forged 7075-T6 aircraft-grade aluminium alloy housing provides for a nearly indestructible sighting system. No other magnified optic has been used more in combat than the Trijicon ACOG.
Mounting bosses are integrated into the housing (near the eyepiece) to allow the easy addition of a Trijicon RMR (not included) with the RM54 mount (not included). No tools are needed for windage and elevation adjustments because the ACOG features external adjusters. All adjuster caps are provided with a lanyard assembly to minimize the loss of caps.
The Trijicon Compact ACOG Mount w/ Q-LOC Technology features a Mil-Spec drop test rated 6061-T6 aluminium design, with an easy to use one-handed tool less mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.
Length X Width X Height | 124.46mm x 55.88mm x 58.42mm |
Weight | 7.9 oz. (223.96g) |
Magnification | 3x |
Objective Size | 24mm |
Reticle Pattern | Horseshoe Dot |
Day Reticle Colour | Red |
Night Reticle Colour | Red |
Bullet Drop Compensating (BDC) | Yes |
Calibre | .223 Rem / 55 gr. |
Bindon Aiming Concept (BAC) | Yes |
Illumination Source | Fibre Optics & Tritium |
Power Source | Fibre Optics & Tritium |
Adjustment | 0.5 MOA per click |
Eye Relief | 1.4 in. (35.56mm) |
Exit Pupil | 0.39 in. (9.91mm) |
Field Of View (Degrees) | 5.6 |
Field of View (Feet) | 25.6 ft. @ 100 yds. (8.53m @ 100m) |
Mount | Trijicon Q-LOC Technology Mount |
Housing Material | Forged Aluminium |
Finish | Matte Black |
Free Shipping | No |
---|
