The first truly high performance optic designed specifically for crossbows. The illuminated reticles accommodate speeds from 300 fps to 400 fps to 440+ fps, feature bolt drop stadia lines out to 80 yards, and has Bad River Outdoors' patented deer/ elk ranging capabilities. Together, they provide the ability for ranging and hold-over, all in the field of view the first reticle of its kind.

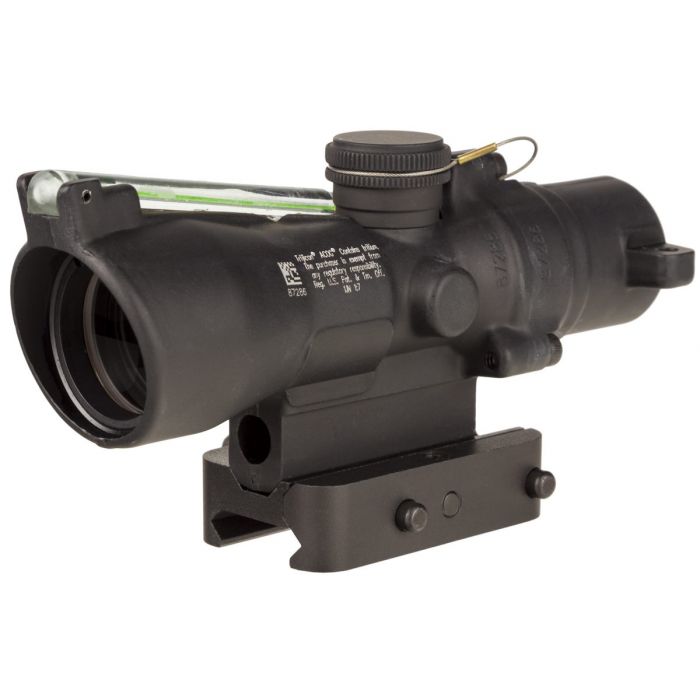

The Trijicon 3x24 XB ACOG Compact Dual Illuminated Crossbow Scope - Green Chevron 400-440+fps Bolt Drop Reticle, Black features a Mil-Spec drop test rated 6061-T6 aluminium design, with an easy to use one-handed tool less mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.
Length X Width X Height | 124.46mm x 53.34mm x 66.04mm |
Weight | 8.2 oz. (232.47g) |
Magnification | 3x |
Objective Size | 24mm |
Reticle Pattern | Chevron |
Day Reticle Colour | Green |
Night Reticle Colour | Green |
Bullet Drop Compensating (BDC) | Yes |
Calibre | 400 fps - 440+ fps |
Bindon Aiming Concept (BAC) | Yes |
Illumination Source | Fibre Optics & Tritium |
Power Source | Fibre Optics & Tritium |
Adjustment | 0.14 MOA per Click |
Exit Pupil | 0.32 in. (8.13mm) |
Field Of View (Degrees) | 4.9-Degrees |
Field Of View (Feet) | 25.6 ft. @ 100 yds. (8.53m @ 100m) |
Mount | Trijicon Q-LOC Technology Mount |
Housing Material | Forged Aluminium |
Finish | Matte Black |
Free Shipping | No |
---|
