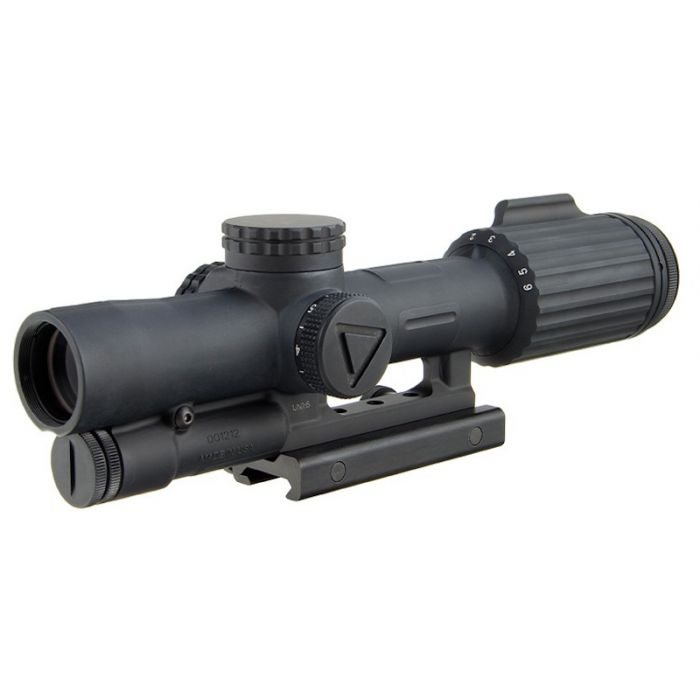

Trijicon VCOG 1-6x24 Segmented Circle / Crosshair MIL Reticle Riflescope
R66,189.00
SKU
VC16-D-1600037
-
1-6x magnification
24mm objective size
First focal plane (ffp)
Tested to mil-std-810g
Description
Introducing the Trijicon VCOG 1-6x24 Segmented Circle / Crosshair MIL Reticle Riflescope. A highly versatile and rugged optical solution designed for both close quarter battle (CQB) and long-distance marksmanship. Its construction features a forged aircraft-grade 7075-T6 aluminium housing, making it exceptionally durable and nearly indestructible, able to withstand the rigours of various operating environments. This reliability is complemented by superior glass that ensures exceptional clarity and colour fidelity without distortion, allowing shooters to maintain target awareness under various conditions.
The VCOG's first focal plane reticle design allows subtensions and bullet drops to remain accurate at any magnification level, providing quick and precise adjustments to hold over or range targets. With a 1-6x magnification range and a 24mm objective size, it offers the flexibility needed for dynamic shooting scenarios. The universal segmented circle/MIL reticle is functional across various platforms, accommodating multiple calibres, ammunition weights, and barrel lengths. This adaptability makes it suitable for various shooting applications, from tactical operations to competitive shooting.
Equipped with ruggedised electronics, the illuminated reticle is powered by a standard AA lithium or alkaline battery, providing up to 1,400 hours of use at brightness setting 4 for the green LED and 700 hours for the red LED. The riflescope includes 11 user-selectable brightness settings, ensuring visibility in different lighting conditions. It also features integrated dial fin adjustments for easy rotation through the magnification range while maintaining a constant eye relief of 4 inches. With no rings needed for mounting and its waterproof rating of up to 20 meters (66 ft), the Trijicon VCOG 1-6x24 is built for the most demanding environments, making it an excellent choice for serious shooters and operators alike.
Features
- 1-6x magnification
- 24mm objective size
- First focal plane (ffp)
- Tested to mil-std-810g
- 11 brightness settings
- Easy-to-set adjusters
- Integrated dial fin adjustments
- 1-6x24 offers bdc or universal mrad and moa reticles
- Multi-coated lenses
- No rings needed
- Brilliantly illuminated reticle is powered by a single aa battery
Specifications
| Brand | Trijicon |
| Magnification | 1-6x |
| Focal Plane | First Focal Plane (FFP) |
| Objective Size | 24mm |
| Reticle Pattern | Segmented Circle / Crosshair |
| Day Reticle Colour | Red |
| Night Reticle Colour | Red |
| Bullet Drop Compensating (Bdc) | Yes |
| Calibre | MIL |
| Bindon Aiming Concept (Bac) | Yes |
| Illumination Source | LED |
| Power Source | AA Lithium or Alkaline Battery |
| Battery Life | Red LED 700 hrs continuous use at brightness setting 4 or 6 |
| Adjustment | 0.1 MIL Per Click |
| Adjustment Range | |
| Elevation | 26.2 MIL total travel |
| Windage | 26.2 MIL total travel |
| Per Revolution | 8 MIL |
| Eye Relief | 4 in. (101.6mm) |
| Exit Pupil | 0.41 in. - 0.15 in. (10.41mm - 3.81mm) |
| Field Of View (Degrees) | 18 - 3 |
| Field Of View (Feet) | 95 ft. - 15.9 ft. at 100 yds. (31.67 - 5.3m at 100m) |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Housing Material | Forged Aluminium |
| Finish | Matte Black |
| Submersion Depth | 66 ft. (20m) |
| Length X Width X Height | 10.05 in x 2.51 in x 2.73 in (255.27mm x 63.75mm x 69.34mm) |
| Weight | 23.2 oz. (657.71g) |
| Free Shipping | No |
|---|
