Matte Black
Flattop Mount
Dual Illum. Red Horseshoe w/ Dot - 5.56 / .223
Made in the USA

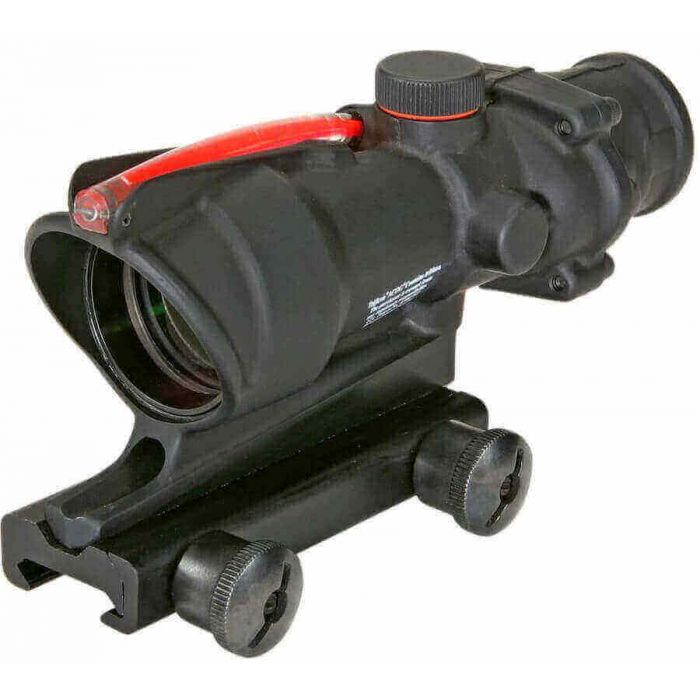

Every feature of the ACOG's (Advanced Combat Optical Gunsight) mechanical and optical design was designed for use with the M16 family of firearms. This sighting system was engineered for a single purpose: to provide increased hit potential in all lighting conditions - without relying upon failure-prone batteries. Although the ACOGs have many features which are very advantageous for military use, they're equally well adapted for sporting and tactical applications. These compact telescopic sights are internally adjustable, with tritium illuminated reticles for use in low-light conditions. This 4x32 ACOG puts adaptability and flexibility into the operator's hands - a necessary edge when the stakes are high, and the terms of engagement are uncertain.
Whether the days work involves precise long-range shot-placement, room-clearing, close-quarters MOUT engagements or high-stress fast-breaking action - sighting through the 4x32 ACOG is comfortable and intuitive. This ACOG's reticle is calibrated for the M4 in 5.56/.223 - the unique horseshoe/dot target reference system offers bullet drop hash marks out to 800 meters, and the ability to gauge hold-offs in windy conditions or moving targets. The 4x magnification offers a respectable FOV and the ability to employ the Bindon Aiming Concept for a both -eyes-open technique that greatly enhances the operator's situational awareness.
Magnification | 4x |
Objective Size (mm) | 32 |
Bullet Drop Compensator | Yes |
Length (in) | 5.8 |
Weight (oz) | 9.9 w/out mount |
Illumination Source | Fiber Optics & Tritium |
Reticle Pattern | Horseshoe w/ Target Reference System |
Day Reticle Color | Red |
Night Reticle Color | Red |
Calibration | 0.223 |
Bindon Aiming Concept | Yes |
Eye Relief (in) | 1.5 |
Exit Pupil (mm) | 8 |
Field of View (Degrees) | 7 |
Field of View @ 100 yards (ft) | 36.8 |
Adjustment @ 100 yards (clicks/in) | 2 |
Mount | TA51 |
Mount Comes With | TA51 |
Housing Material | Forged Aluminum |
Free Shipping | No |
---|
