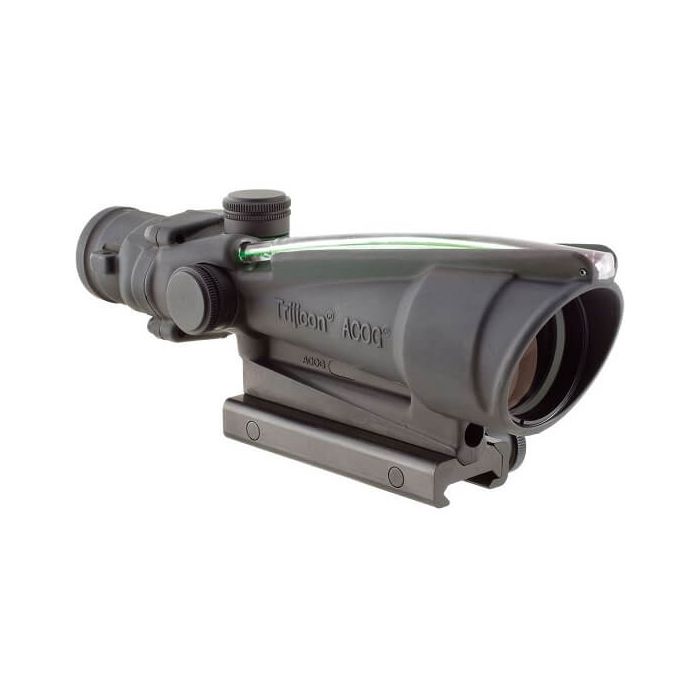

Trijicon ACOG 3.5x35 Dual Illum Green Crosshair .223 Ballistic With TA51
Green Crosshair Ballistic Reticle - 5.56x45/.223
Dual Illumination - Tritium/Fiber Optics
Picatinny Flat-Top Mount
Waterproof Fogproof


Description
The 3.5x35 ACOG from Trijicon sits at a moderate height on top of the receiver. While delivering a mid-range 3.5x magnification, the efficient 35 mm objective produces a bright, crisp, and clear sight picture. Trijicon's proprietary tritium/fiber optic technology ensures that the reticle remains highly-visible 24/7/365. Combining the obvious assets of a generous FOV, bright reticle, and moderate magnification ensures the operator's ability to engage targets with confidence and outstanding fire-control capability. Any target - moving or otherwise - will be easier to acquire, lock on to, and hit successfully with the first shot. This ACOG is configured with a Picatinny flat-top mount, and a dual illuminated green crosshair ballistic reticle that's calibrated for 5.56x45/.223.
Features
- Broad-band multicoated lenses enhance clarity and increase light transmission by minimizing flare, glare, reflections
- Forged 7075-T6 aircraft aluminum alloy housing
- Nitrogen purged and fully sealed for all-weather reliability
- Picatinny flat-top mount: compatible with Mil-Std 1913 Picatinny rails, features two Colt-style thumbscrews
- The Bindon Aiming Concept ensures a far superior sense of balance, and a wider field-of-view.
- Green crosshair ballistic reticle
- Calibrated for 5.56x45/.223
Specifications
| Magnification | 3.5x |
| Objective Size (mm) | 35 |
| Bullet Drop Compensator | Yes |
| Length (in) | 8 |
| Weight (oz) | 14.0 w/out mount |
| Illumination Source | Fiber Optics & Tritium |
| Reticle Pattern | Crosshair |
| Day Reticle Color | Green |
| Night Reticle Color | Green |
| Calibration | 0.223 |
| Eye Relief (in) | 2.4 |
| Exit Pupil (mm) | 10 |
| Field of View (Degrees) | 5.5 |
| Field of View @ 100 yards (ft) | 28.9 |
| Adjustment @ 100 yards (clicks/in) | 3 |
| Mount | TA51 |
| Mount Comes With | TA51 |
| Housing Material | Forged Aluminum |
| Free Shipping | No |
|---|
