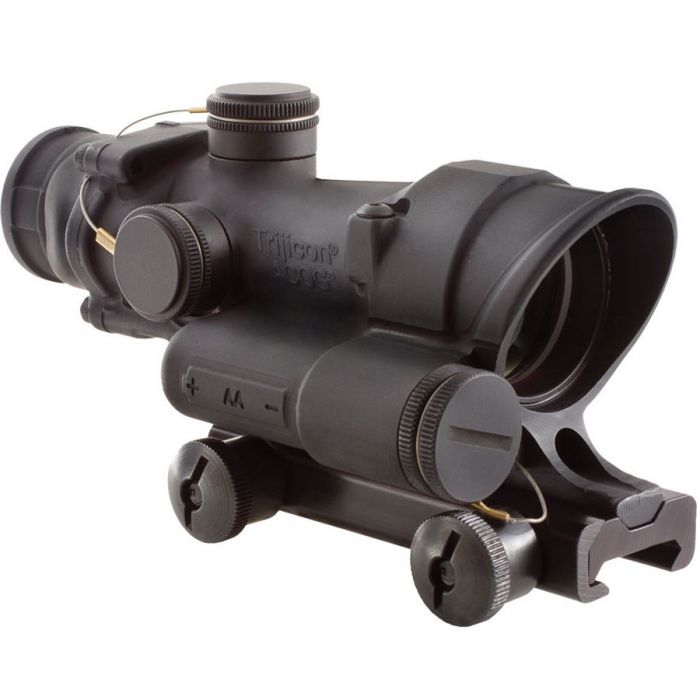

Trijicon ACOG BDC 4x32 LED Illuminated Riflescope - Green Chevron Reticle, Black
- Green Chevron BDC Reticle
- Six Reticle Intensity Levels
- Nitrogen-Filled, Water and Fogproof
- Hard-Anodized Aluminium Housing


Description
From the legendary ACOG family of products, the Trijicon ACOG BDC 4x32 LED Illuminated Riflescope - Green Chevron Reticle, Black is the first to offer user-selectable brightness controls. Users can select from six adjustable brightness levels with an "off" between each setting, allowing the operator to determine how much to illuminate the reticle - even in transitional lighting. Powered by a single AA battery, the LED ACOG can run for over 12,000 continuous hours (on setting 4).
The body has been optimized by moving the RMR mount forward to maximize its performance in conjunction with the ACOG. Like all ACOG models, it is forged from rugged 7075-T6 aircraft-aluminium, resulting in a nearly indestructible sighting system and electronics that offer outstanding reliability. Users can select multiple bullet drop compensating and ranging reticle options. Fully night vision device compatible, the Trijicon 4x32 LED ACOG is also compatible with most other 4x32 ACOG accessories available.
Features
- Green Chevron BDC Reticle
- Six Reticle Intensity Levels
- Nitrogen-Filled, Water and Fogproof
- Hard-Anodized Aluminium Housing
- 1/2 MOA Impact Point Correction
- 1.5" Eye Relief
- TA51 Picatinny Mount
- 4x magnification
- 32mm diameter objective
- Fully multi-coated optics
- Broadband lens coating
- 7-Degrees angle of view
- 1.5" eye relief
Specifications
| Length x Width x Height | 152.4mm x 73.66mm x 63.5mm) |
| Weight | 17.6 oz. (498.95g) |
| Magnification | 4x |
| Objective Size | 32mm |
| Reticle Pattern | Chevron |
| Day Reticle Colour | Green |
| Night Reticle Colour | Green |
| Bullet Drop Compensating (BDC) | Yes |
| Calibre | .223 / 5.56 |
| Bindon Aiming Concept (BAC) | Yes |
| Illumination Source | LED |
| Power Source | AA Lithium or Alkaline Battery |
| Battery Life | Over 12,000 hours on setting 4 using supplied alkaline battery at 21 deg C (70 deg F) |
| Adjustment | 2 clicks per inch @100 yards |
| Eye Relief | 1.5 in. (38.1mm) |
| Exit Pupil | 0.32 in. (8.13mm) |
| Field Of View | 7-Degrees |
| Field Of View | 36.8 ft. @ 100 yds. (12.27m @ 100m) |
| Mount | Flattop Thumbscrew Mount (TA51) |
| Housing Material | Forged Aluminium |
| Finish | Matte Black |
