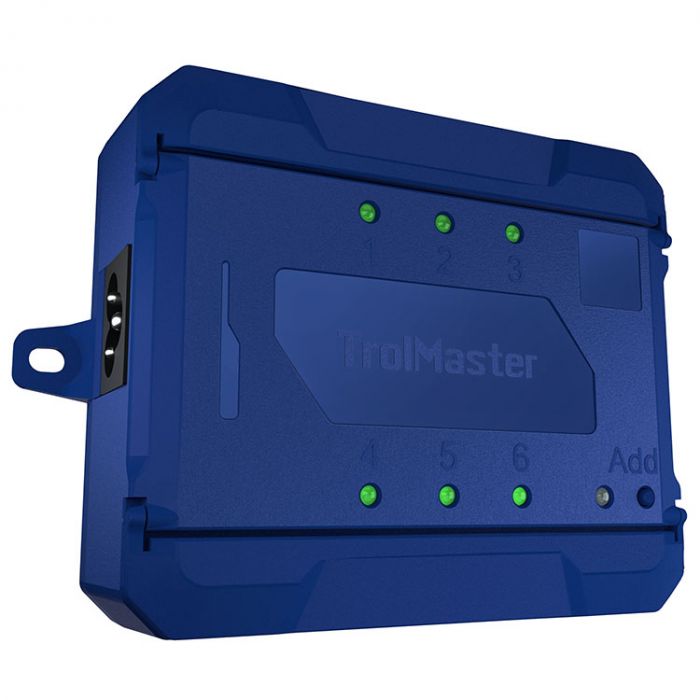

TrolMaster Aqua-X OA6-24 Control Board - 24V

Description

The TrolMaster Aqua-X OA6-24 Control Board is designed to control multiple 24vac solenoid valves. It provides an easy and efficient method to control up to 6 valves, each with individual timer settings. Up to 5 OA6-24 can be connected to a single Aqua-X providing a maximum of 30 individually controlled outputs to connect to your solenoid valves.

The Aqua-X can also provide a master pump link by using a DSP-1 along with the OA6-24. Connecting a DSP-1 to the OA6-24 provides an automatic pump link between the DSP-1 and the OA6-24. When any of the 24vac irrigation zones are activated on the OA6-24, the DSP-1 will automatically turn on the pump.

Features

• LED Power indicator
• Addressing button
• Individually controlled outputs
• LED controller indicators
• Daisy chain connectivity
