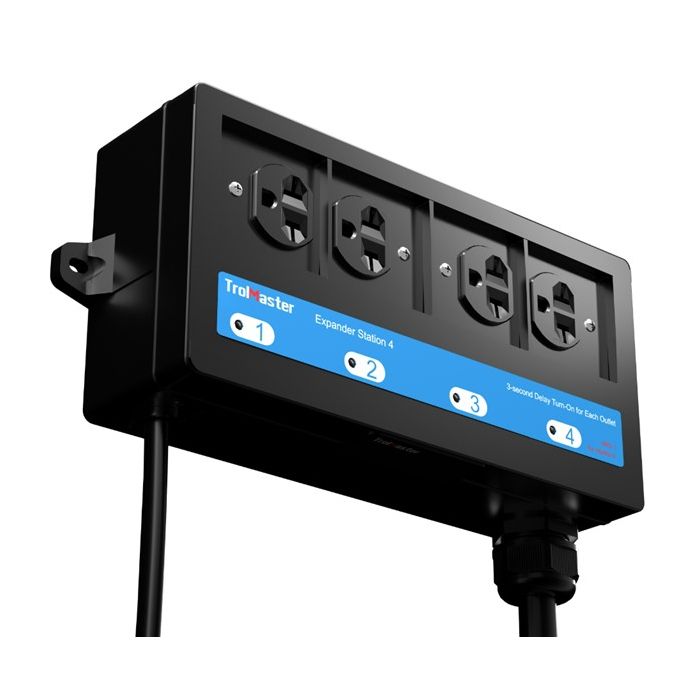

TrolMaster Hydro X Environmental Control Expander Station - 4
R3,159.00
SKU
4RS1
Description
The TrolMaster Hydro X Environmental Control Expander Station can be used with any of TrolMasters plug-in style device modules to expand the number of devices that can be controlled by the Hydro-x.
A single 120-240 volt trigger cable on the TrolMaster Hydro X Environmental Control Expander Station connects to your device / control module. When the device module is activated by the Hydro-x, the TrolMaster Hydro X Environmental Control Expander Station trigger cable will turn on each of the 4 receptacles on the 4RS-1 with a 3-second time delay between each outlet being activated, which minimizes high start-up (inrush current) and allows up to 4 devices to be safely controlled.
The TrolMaster Hydro X Environmental Control Expander Station must be installed with a 120/240 volt power circuit (up to 50-amps at 240vac). With the TrolMaster Hydro X Environmental Control Expander Station there are 3 wire terminals inside that accept up to 6 AWG wire making connections to the power source easy.
Features
- Connects to your device
- Helps expand number of connected devices
- Easy to use
- Individual Power Relay
- Turns of devices with 3-second delay between each outlet
- Minimizes high start-up (inrush current)
- Allows up to 4 devices to be safely controlled
Specifications
| Main Power Voltage | 240V |
| Receptacle Quantity | 4 |
| Max Relay Amperage | 25A |
| Operating Temperature | 41-140 degree Fahrenheit |
| Operating Humidity | 0-99% Noncondensing |
| Package Dimensions | 275mm x 255mm x 95mm |
| G.W. per pack | 1.50kg |
| Free Shipping | No |
|---|
