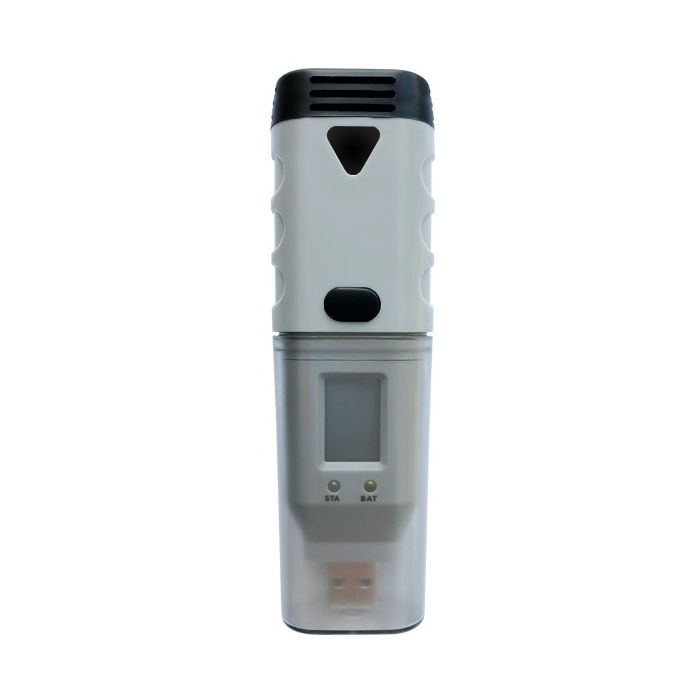

USB Data Logger


Portable, precise, compact and low cost Easy to log and analyse data Strict design ensure long term reliable work

Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed



The USB Data Logger can measure and store 4-20mA current readings automatically. The professional applications can be provided by the PC software DGraph. Logger status, alarm indication and low battery indication are via flashing red/green LED and yellow LED. The button on the housing can be used to start logging, or confirm and clear LED alarm when LED alarm is in hold status.



  • Portable, precise, compact and low cost
  • Easy to log and analyse data
  • Unique and uniform pc software, dgraph can meet your higher requirements
  • Elaborate design makes it perfectly work in more application field
  • Strict design ensure long term reliable work
  • Enhanced electrostatic protection design to prevent unexpected damage
  • Each unit have single serial number identified by dgraph software to manage data simply
  • All data from different data logger and all different measurement parameters can be graphed and analysed together
  • USB interface directly communicate with pc for setup and data download



Dc Current Measurement Range 4 To 20Ma
Accuracy(Typ.) 1%1Count
Resolution 0.05Ma
LCD With A Lcd Display
Memory Capacity 64Kbytes
Sample Rate 1Sec. To 12Hr.
Power Supply User Replaceable 1/2Aa 3.6V Lithium Battery 1200Mah
Battery Life Approx. 3 Years @ 1 Minute Sample Rate
Internal Input Impedance 120
Operating Range 0 To 100%Rh -35 To 80(-31 To 176)
Storage Range Recommended 20 To 60%Rh 10 To 50(50 To 122)
Case Material Abs
Dimensions 130mm x 37mm x 23mm(5.1X1.5X0.9)
Weight Approx. 69 Grams(2.43Oz)
