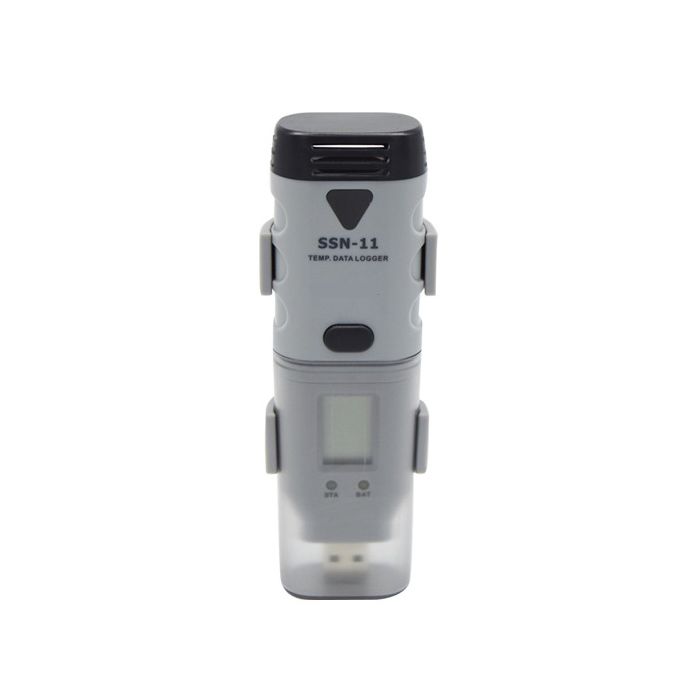

USB Temperature Data Logger

Description

The USB Temperature Data Logger measures and stores up to 32,000 temperature (-35 to 80(-31176) readings. Some professional applications can be provided by the PC software DGraph. Logger status, alarm indication and low battery indication are via flashing red/green LED and yellow LED. The button on the housing can be used to start logging, or confirm and clear LED alarm when LED alarm is in hold status.

Plug data logger straight into PCs USB port without any cables. Before getting started, user need to install USB driver and DGraph software, provided on the CD which is included in the product packing box. Software can run under Windows XP, Vista, 7 or 8(32 bit and 64 bit Versions). Easily use DGraph software to set up sample rate (from 2 seconds to 12 hours), high/low alarm limit and start/stop method, and download data to PC, etc. And then view, analyse and print the data, or export other file formats (txt, xsl, csv, bmp, jpg).

Features

• Portable, precise, compact and low cost
• USB interface directly communicate with pc for setup and data download
• Alarm and status indication via led
• Replaceable lithium battery and data is not lost if exhausted
• Two point calibration for each channel
• Alarm limits settings for all channels
• User can name each channel and enable/disable it
• Easy to use, stable and reliable

Specifications
