USB Thermocouple Data Logger

R2,099.00
SKU
SSN61

Single input Type K, J, T selectable Accepts standard male mini plug (flat pin) 32,000 reading memory

Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed



Description

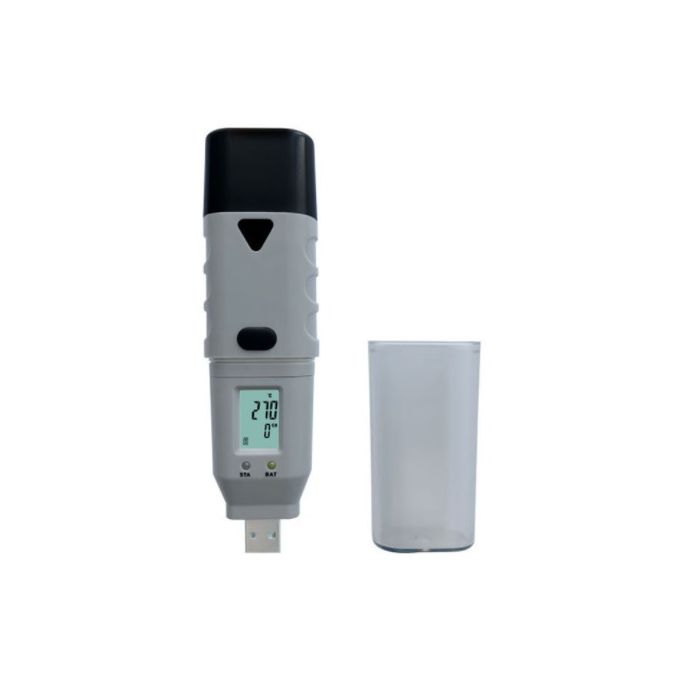

The USB Thermocouple Data Logger measures and stores up to 32,000 temperature (-200 to 1080) readings. Some professional applications can be provided by the PC software DGraph. Logger status, alarm indication and low battery indication are via flashing red/green LED and yellow LED. The button on housing can be used to start logging, or confirm and clear LED alarm when LED alarm is in hold status.



Features

  • Single input Type K, J, T selectable
  • Accepts standard male mini plug (flat pin)
  • 32,000 reading memory
  • Start/Stop button on logger or Time delayed start
  • LCD display for viewing real-time values
  • Includes DGraph software and battery



Specifications

Measurement Range
k-type -260 to 1360C
J-type -200 to 1190C
T-type -260 to 390C
Accuracy(Typ.) 0.5%1C
Resolution(Typ.) 0.5C(1F)
Sensor Location External
LCD Yes
Memory Capacity 64 KBytes(Total 32,000 readings)
Sample Rate Every 1sec. to every 24hr.
Pc Software DGraph software and USB driver required (Included in CD)
Power Supply User replaceable 1/2AA 3.6V lithium battery, 1200mAh
Battery Life Approx. 2 Years @ 1 Minute Sample Rate
Dimensions 139mmx37mmx23mm(5.5"x1.5"x0.9")
Case Material And Weight ABS Approx, 72 grams(2.54oz) IP54
