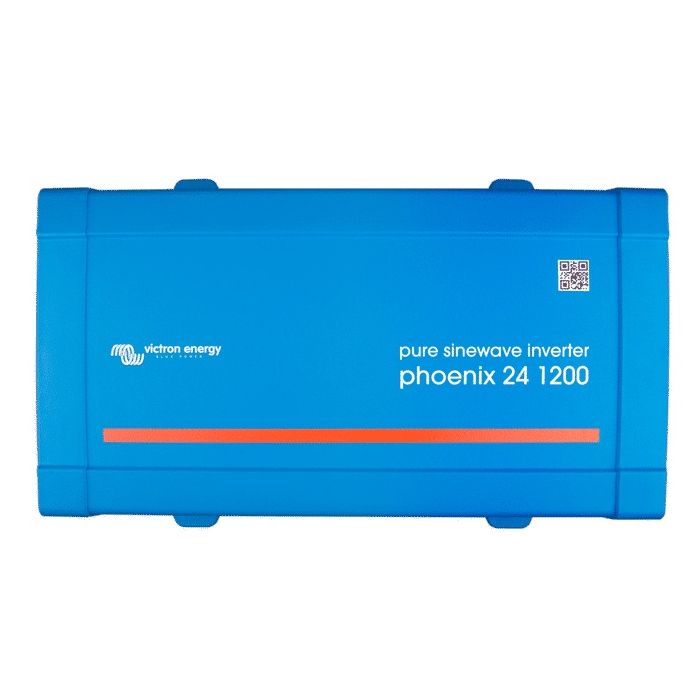

Victron Energy 24/1200 Phoenix Inverter - 24 Volt
R9,949.00
SKU
3800700082
Manufacturer's Website
Description
The Victron Energy 24/1200 Phoenix Inverter - 24 Volt allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC. The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverter is short circuit proof and protected against overheating, whether due to overload or high ambient temperature. High start-up power needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
A remote on/off switch can be connected to a two-pole connector, or between battery plus and the left-hand contact of the two-pole connector.
Features
- Ve.direct communication port
- Low battery voltage alarm trip and reset levels
- Low battery voltage cut-off and restart levels
- Dynamic cut-off: load dependent cut-off level
- Output voltage 210 - 245v
- Frequency 50 hz or 60 hz
- Eco mode on/off and eco-mode sense level
- High start-up power
- Led diagnosis
- Schuko output socket
- DC connection with screw terminals
Specifications
| Cont. Power At 25C (1) | 1200VA |
| Cont. Power At 25C | 1000 / 850W |
| Peak Power | 2200W |
| Output Ac Voltage / Frequency (Adjustable) | 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0,1% |
| Input Voltage Range | 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V |
| Dc Low Shut Down (Adjustable) | 9,3 / 18,6 / 37,2V |
| Dc Low Restart And Alarm (Adjustable) | 10,9 / 21,8 / 43,6V |
| Battery Charged Detect (Adjustable) | 14,0 / 28,0 / 56,0V |
| Max. Efficiency | 91 / 91 / 92% |
| Zero-Load Power | 7 / 8 / 10W |
| Default Zero-Load Power In Eco Mode (Default Retry Interval | 1 / 1,5 / 3,0W |
| Eco Mode Stop And Start Power Setting | Adjustable |
| Protection (2) | a - f |
| Operating Temperature Range | -40 to +65C (fan assisted cooling) Derate 1,25% per C above 40C |
| Humidity (Non-Condensing) | max 95% |
| Enclosure | |
| Material & Colour | Steel chassis and plastic cover (blue Ral 5012) |
| Battery-Connection | Screw terminals |
| Maximum Cable Cross-Section | 35 / 25 / 25mm2 /AWG2 / 4 / 4 |
| Standard Ac Outlets | 230V: Schuko (CEE 7/4), IEC-320 (male plug included) UK (BS 1363), AU/NZ (AS/NZS 3112) 120V: Nema 5-15R, GFCI |
| Protection Category | IP 21 |
| Weight | 7,4kg / 16,3lbs |
| Dimensions (H X W X D, Mm) | (12V model:117 x 232 x 362) |
| Free Shipping | No |
|---|
