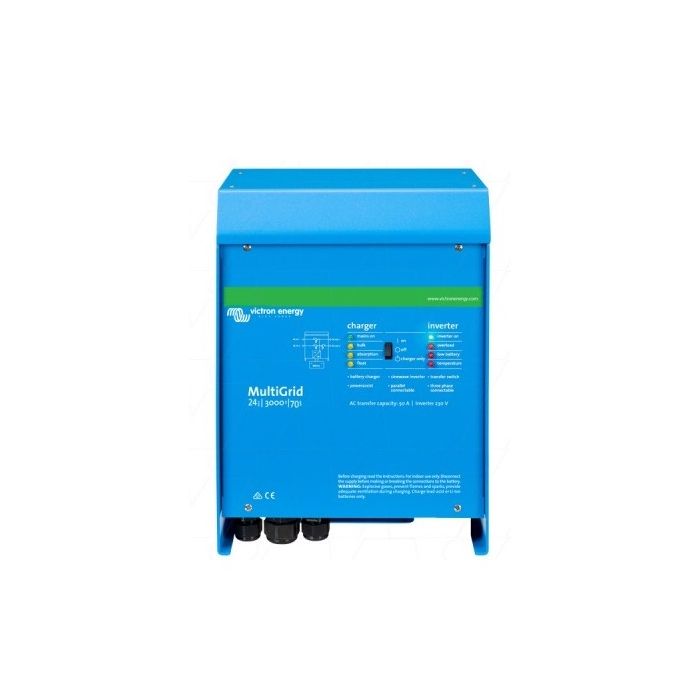

Victron Energy 24/3000-70-50 MultiGrid Inverter/Charger - 3000W
R29,349.00
SKU
3800700033
Shipping restrictions apply.
Manufacturer's Website
Description
The Victron Energy 24/3000-70-50 MultiGrid Inverter/Charger - 3000W fits seamlessly in all common energy storage topologies. There is no on -size-fits-all solution to energy storage. The building blocks, topology and control systems will depend on local conditions and regulations. The MultiPlus range of bidirectional converters is the worldwide product of choice on boats and vehicles to generate AC power, and to recharge batteries, either with shore power or an onboard AC generator. The MultiPlus also is the industry standard in on-grid and off-grid energy storage systems and is approved for use in energy storage and self-consumption systems in the UK (G83/2 and G59-3-1 standards). Some hardware and firmware modifications were needed to qualify for VDE-AR-N 4105 and several other country specific energy storage related standards. The resulting product is the MultiGrid.
Features
- Fits seamlessly in all common energy storage topologies
- Colour control panel
- Remote monitoring and control
- Uninterrupted AC power
- Virtually unlimited power thanks to parallel operation
- Combined with the flexibility of a multiplus bidirectional converter
Specifications
| Model | 24/3000-70-50 |
| Power Control | Yes |
| Power Assist | Yes |
| Transfer Switch | 50A |
| Inverter | |
| Input Voltage Range | 19 - 33 V 38- 66 V |
| Output Output Voltage | 230 VAC 2% |
| Frequency | 50 Hz - 0,1% (1) |
| Cont. Output Power At 25C (3) | 3000 VA |
| Cont. Output Power At 25C | 2400 W |
| Cont. Output Power At 40C | 2200 W |
| Cont. Output Power At 65C | 1700 W |
| Peak Power (W) | 6000 W |
| Maximum Efficiency | 94 / 95 % |
| Zero Load Power | 20 / 25 W |
| Zero Load Power In Aes Mode | 15 / 20 W |
| Zero Load Power In Search Mode | 10 / 12 W |
| Charger | |
| Ac Input Input Voltage Range | 187-265 VAC |
| Input Frequency | 45 65 Hz |
| Charge Voltage 'Absorption' | 28,8 / 57,6 V |
| Charge Voltage 'Float' | 27,6 / 55,2 V |
| Storage Mode | 26,4 / 52,8 V |
| Maximum Battery Charge Current (4) | 70 / 35 A |
| Battery Temperature Sensor | Yes |
| General | |
| Auxiliary Output | Yes (16 A) Switches off when no external AC source available |
| Programmable Relay (5) | Yes |
| Protection | (2) a - g |
| Ve.Bus Communication Port | For parallel and three phase operation, remote monitoring and system integration |
| General Purpose Com. Port | Yes |
| Remote On-Off | Yes |
| Operating Temperature Range | -40 to +65C (fan assisted co |
| Enclosure | |
| Material & Colour | Aluminium, blue RAL 5012 |
| Protection Category | IP 21 |
| Battery-Connection | Four M8 bolts (2 plus and 2 minus connections) |
| 230 V Ac-Connection | Screw terminals 13 mm (6 AWG) |
| Weight | 18 kg |
| Dimensions (Hxwxd) | 362 X 258 X 218 Mm |
| Free Shipping | No |
|---|
