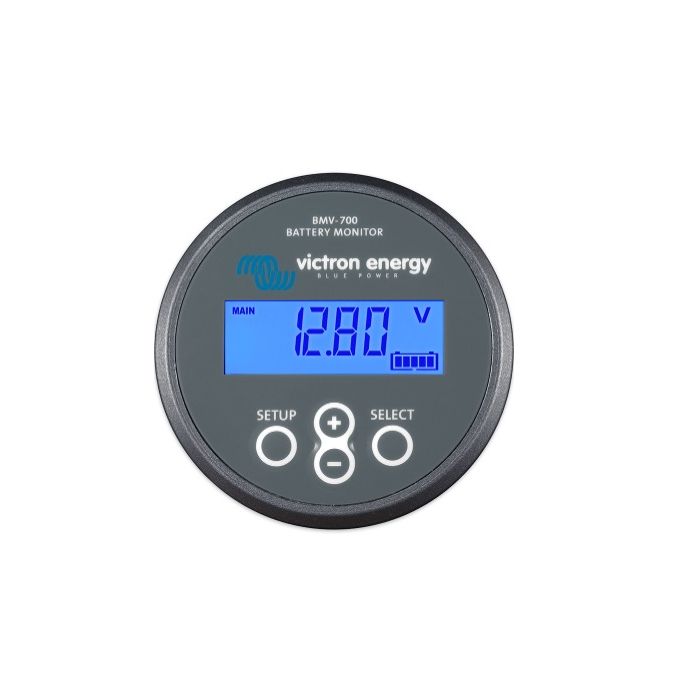

Victron Energy BMV-700 Battery Monitor

R3,639.00
SKU
3800700048
Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed
Manufacturer's Website





Description

The Victron Energy BMV-700 is a high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery.



Features

  • Easy to install
  • Easy to program (with your smartphone!)
  • Battery voltage, current, power, ampere-hours consumed and state of charge
  • Programmable visual and audible alarm
  • Remaining time at the current rate of discharge
  • VE.Direct communication port
  • Shunt selection capability up to 10,000 Amps
  • Programmable relay, to turn off non-critical loads or to run a generator when needed



Specifications

Battery Monitor BMV-700
Supply Voltage Range 6.5 - 95 VDC
Current Draw, Back Light Off 4 mA
Input Voltage Range, Auxiliary Battery N/A
Battery Capacity (Ah) 1 - 9999 Ah
Operating Temperature Range -40 +50 C (-40 120 F)
Measures Voltage Of Second Battery, Or Temperature, Or Midpoint No
Temperature Measurement Range -20 +50 C
Ve.Direct Communication Port Yes
Bistable Relay 60V / 1A normally open (function can be inverted)
Resolution & Accuracy (With A 500 A Shunt)
Current 0.01 A
Voltage 0.01 V
Amp Hours 0.1 Ah
State Of Charge (0 - 100%) 0.1 %
Time To Go 1 min
Temperature N/A
Accuracy Of Current Measurement 0.4 %
Accuracy Of Voltage Measurement 0.3 %
Installation & Dimensions
Installation Flush mount
Front 63mm diameter
Front Bezel 69 x 69mm (2.7 x 2.7 inch)
Shunt Connections Bolts M10 (0.3937 inch)
Body Diameter And Depth 52 mm (2.0 inch) and 31 mm (1.2 inch)
Protection Category IP55 (not intended for outdoor use)
Standards
Safety EN 60335-1
Emission / Immunity EN 55014-1 / EN 55014-2
Automotive ECE R10-4 / EN 50498
