Victron Energy EasySolar-II GX 48/5000/70-50 Inverter/Charger
R60,599.00
SKU
3800700197
Colour Control panel
AC distribution
PowerAssist
Unique solar application software
Shipping restrictions apply.
Manufacturer's Website
Description
The Victron Energy EasySolar-II GX 48/5000/70-50 Inverter/Charger combines an MPPT Solar Charge Controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring. Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed. Several software programs (Assistants) are available to configure the system for various grid-interactive or stand-alone applications.

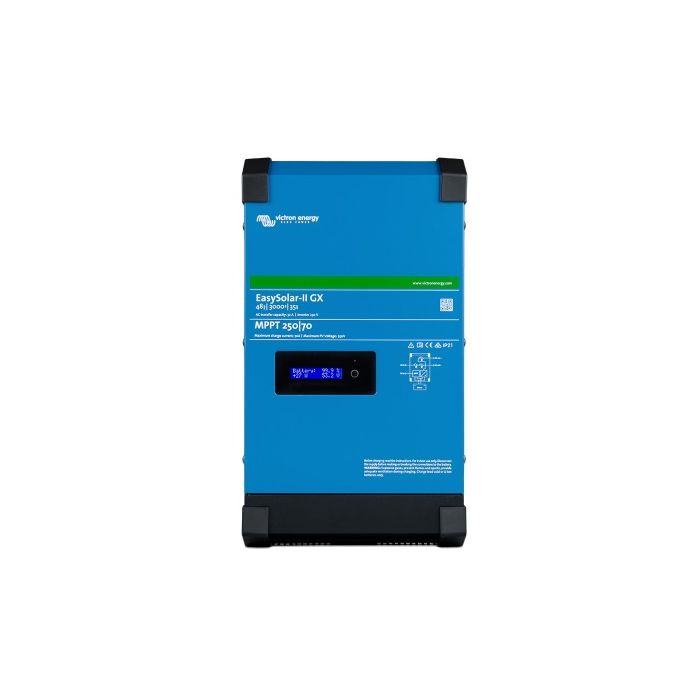

Please Note: Picture used for illustrative purposes ONLY.
Features
- The all-in-one solar power solution
- Display and Wi-Fi
- Colour control panel
- Ac distribution
- Powerassist
- Unique solar application software
Specifications
| Powercontrol & Powerassist | Yes |
| Transfer Switch | 50 A |
| Maximum Ac Input Current | 50 A |
| Auxiliary Output | 50 A |
| Inverter | |
| Input Voltage Rang | 38 66 V |
| Output Output Voltage | 230 VAC 2 % |
| Frequency | 50 Hz 0,1 % (1) |
| Cont. Output Power At 25 C (3) | 5000 VA / 4000 W |
| Cont. Output Power At 40 C / 55 C | 3700 W / 3000 W |
| Maximum Apparent Feed-In Power | 4400 W / 5000 VA |
| Peak Power | 9000 W |
| Maximum Efficiency | 96% |
| Zero Load Power | 18 W |
| Zero Load Power In Aes Mode | 12 W |
| Zero Load Power In Search Mode | 2 W |
| Charger | |
| Ac Input Input Voltage Range | 187-265 VAC |
| Input Frequency | 45 - 65 Hz |
| Charge Voltage 'Absorption' | 57,6 V |
| Charge Voltage 'Float' | 55,2 V |
| Storage Mode | 52,8 V |
| Maximum Battery Charge Current | A 70 A |
| Battery Temperature Sensor | Yes |
| Programmable Relay (5) | Yes |
| Protection (2) | a - g |
| Ve.Bus Communication Port | For parallel and three phase operation, remote monitoring and system integration |
| General Purpose Com. Port | Yes, 2x |
| Smartsolar Charge Controller | |
| Model Mppt | MPPT 250/100-Tr |
| Maximum Output Current | 100 A |
| Maximum Pv Power | 5800 W |
| Maximum Pv Open Circuit Voltage | 250 V |
| Maximum Efficiency | 99% |
| Self-Consumption | 20 mA |
| Charge Voltage 'Absorption', Default | 57,6 V |
| Charge Voltage 'Float', Default | 55,2 V |
| Protection (2) | a - e |
| General | |
| Interfaces | BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi |
| Remote On-Off | Yes |
| Operating Temp. Range | -20 to +45 C (fan assisted cooling) Max. altitude 2000 m |
| Humidity (Non-Condensing) | max 95 % |
| Enclosure | |
| Material & Colour Aluminium | (blue RAL 5012) |
| Protection Category | IP21 |
| Battery-Connection | M8 bolts |
| Pv Connection | M6 bolts |
| 230 Vac-Connection | Screw terminals 16 mm2 (6 AWG) |
| Weight | 38.6 kg |
| Dimensions (H X W X D) Mm | 604 x 323 x 253 |
| Free Shipping | No |
|---|
