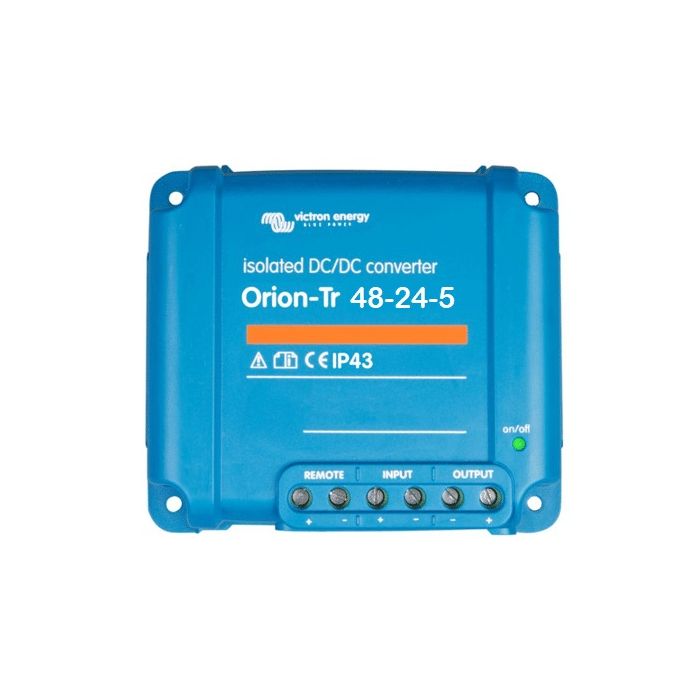

Victron Energy Orion-Tr DC-DC Converter - 48/24-5A, 120W
R1,649.00
SKU
3800700076
Manufacturer's Website
Description
The Victron Energy Orion-Tr DC-DC Converter - 48/24-5A, 120W allow a wide voltage input and a stable user adjustable output, making it ideal for use with sensitive DC equipment. The remote's on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch. An unlimited number of units can be connected in parallel. The output current will reduce at high ambient temperature. When installed with the screw terminals oriented downwards.
Features
- Remote on-off
- All models are short circuit proof and can be paralleled to increase output current
- High temperature protected
- IP43 protection
- Screw terminals
- No special tools needed for installation
- Input fuse (not replaceable)
- On 12 V and 24 V input models only
- Adjustable output voltage
- Not intended for battery charging
Specifications
| Input voltage range (1) | 32-70 V |
| Under voltage shut down | 28 V |
| Under voltage restart | 30 V |
| Nominal output voltage | 24.2 V |
| Output voltage adjust range | 20-30 V |
| Output voltage tolerance | +/- 0.2 V |
| Output noise | 2mV rms |
| Cont. output current at nominal | |
| output voltage and 25 C | 5 A 2.5 A |
| Maximum output current | (10 s) |
| at nominal output voltage | 6.3 A |
| Short circuit output current | 25 A |
| Cont. output power at 25 C | 120 W |
| Cont. output power at 40 C | 100 W |
| Efficiency | 86 % |
| No load input current | 60 mA |
| Galvanic isolation | 200 V dc between input, output and case |
| Operating temperature range | -20 to +55 C (derate 3 % per C above 40 C) |
| Humidity Max. | 95 % non-condensing |
| DC connection | Screw terminals |
| Maximum cable | cross-section 6 mm AWG10 |
| Weight | 0,42 kg (1 lb) |
| Dimensions (hxwxd ) | 100 x 113 x 47 mm (4.0 x 4.5 x 1.9 inch) |
