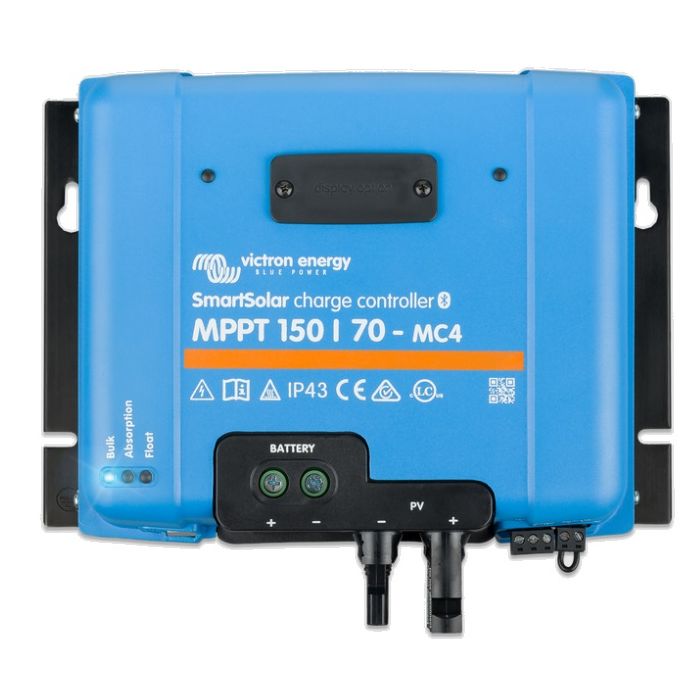

Victron Energy SmartSolar MPPT Charging Controller - 150/70-MC4

R14,949.00
SKU
5001000026
Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed
Manufacturer's Website





Description

The Victron Energy SmartSolar MPPT Charging Controller - 150/70-MC4 uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges a battery banks. The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.



Features

  • Control your charger remotely
  • Daisy chain additional units
  • Remote monitoring and control
  • Smartsolar control display
  • Ultra-fast maximum PowerPoint tracking (MPPT)
  • Outstanding conversion efficiency
  • Extensive electronic protection
  • Advanced maximum PowerPoint detection in case of partial shading conditions



Specifications

Battery Voltage 12/24/48 V Auto Select (36 V: manual)
Rated Charge Current 70 A
Nominal Pv Power, 12 V 1A,B) 1000 W
Nominal Pv Power, 24 V 1A,B) 2000 W
Nominal Pv Power, 36 V 1A,B) 3000 W
Nominal Pv Power, 48 V 1A,B) 4000 W
Max. Pv Short Circuit Current 2) max 30 A per MC4 conn.
Maximum Pv open circuit voltage 150 V absolute maximum coldest conditions 145 V start-up and operating maximum
Maximum Efficiency 98 %
Self-Consumption Less than 35 mA @ 12 V / 20 mA @ 48 V
Charge Voltage 'Absorption' Default setting: 14,4 / 28,8 / 43,2 / 57,6 V (adjustable with: rotary switch, display, VE.Direct or Bluetooth)
Charge Voltage 'Float' Default setting: 13,8 / 27,6 / 41,4 / 55,2 V (adjustable: rotary switch, display, VE.Direct or Bluetooth)
Charge Voltage 'Equalization' Default setting: 16,2 V / 32,4 V / 48,6 V / 64,8 V (adjustable)
Charge Algorithm multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm
Temperature Compensation -16 mV / -32 mV / -64 mV / C
Protection PV reverse polarity / Output short circuit / Over temperature
Operating Temperature -30 to +60 C (full rated output up to 40 C)
Humidity 95 %, non-condensing
Maximum Altitude 5000m (full rated output up to 2000m)
Environmental Condition Indoor, unconditioned
Pollution degree PD3
Data Communication VE.Can, VE.Direct and Bluetooth
Remote On/Off Yes (2 pole connector)
Programmable relay DPST AC rating: 240 VAC / 4 A DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC
Parallel Operation Yes, parallel synchronised operation with VE.Can (max. 25 units) or Bluetooth (max. 10 units)
Enclosure
Colour Blue (RAL 5012)
Protection Category IP43 (electronic components), IP22 (connection area)
Weight 3kg
Dimensions (H X W X D) 215x 250 x 95 mm
