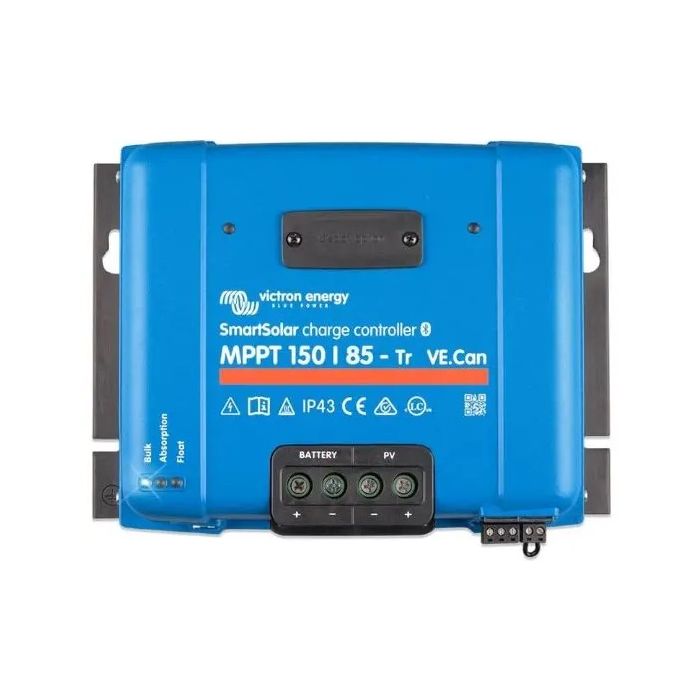

Victron Energy SmartSolar MPPT Charging Controller - 150/85-Tr VE.Can
R12,899.00
SKU
5001000070
Control your charger remotely
Daisy chain additional units
Remote monitoring and control
Smartsolar control display
Ultra-fast maximum PowerPoint tracking (MPPT)
Manufacturer's Website
Description
The Victron Energy SmartSolar MPPT Charging Controller - 150/85-Tr VE.Can uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges a battery banks. The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.
The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.
Features
- Control your charger remotely
- Daisy chain additional units
- Remote monitoring and control
- Smartsolar control display
- Ultra-fast maximum PowerPoint tracking (MPPT)
- Outstanding conversion efficiency
- Extensive electronic protection
- Advanced maximum PowerPoint detection in case of partial shading conditions
Specifications
| Battery Voltage | 12/24/48 V Auto Select (36 V: manual) |
| Rated Charge Current | 85 A |
| Nominal Pv Power, 12 V 1A,B) | 1200 W |
| Nominal Pv Power, 24 V 1A,B) | 2400 W |
| Nominal Pv Power, 36 V 1A,B) | 3600 W |
| Nominal Pv Power, 48 V 1A,B) | 4900 W |
| Max. Pv Short Circuit Current 2) | 70 A (max 30 A per MC4 conn.) |
| Maximum Pv | open circuit voltage 150 V absolute maximum coldest conditions 145 V start-up and operating maximum |
| Maximum Efficiency | 98 % |
| Self-Consumption | Less than 35 mA @ 12 V / 20 mA @ 48 V |
| Charge Voltage 'Absorption' | Default setting: 14,4 / 28,8 / 43,2 / 57,6 V (adjustable with: rotary switch, display, VE.Direct or Bluetooth) |
| Charge Voltage 'Float' | Default setting: 13,8 / 27,6 / 41,4 / 55,2 V (adjustable: rotary switch, display, VE.Direct or Bluetooth) |
| Charge Voltage 'Equalization' | Default setting: 16,2 V / 32,4 V / 48,6 V / 64,8 V (adjustable) |
| Charge Algorithm | multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm |
| Temperature Compensation | -16 mV / -32 mV / -64 mV / C |
| Protection | PV reverse polarity / Output short circuit / Over temperature |
| Operating Temperature | -30 to +60 C (full rated output up to 40 C) |
| Humidity | 95 %, non-condensing |
| Maximum Altitude | 5000m (full rated output up to 2000m) |
| Environmental Condition | Indoor, unconditioned |
| Pollution | degree PD3 |
| Data Communication | VE.Can, VE.Direct and Bluetooth |
| Remote On/Off | Yes (2 pole connector) |
| Programmable | relay DPST AC rating: 240 VAC / 4 A DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC |
| Parallel Operation | Yes, parallel synchronised operation with VE.Can (max. 25 units) or Bluetooth (max. 10 units) |
| Enclosure | |
| Colour | Blue (RAL 5012) |
| Protection Category | IP43 (electronic components), IP22 (connection area) |
| Weight | 4,5kg |
| Dimensions (H X W X D) In Mm Tr Models | 216 x 295 x 103 |
