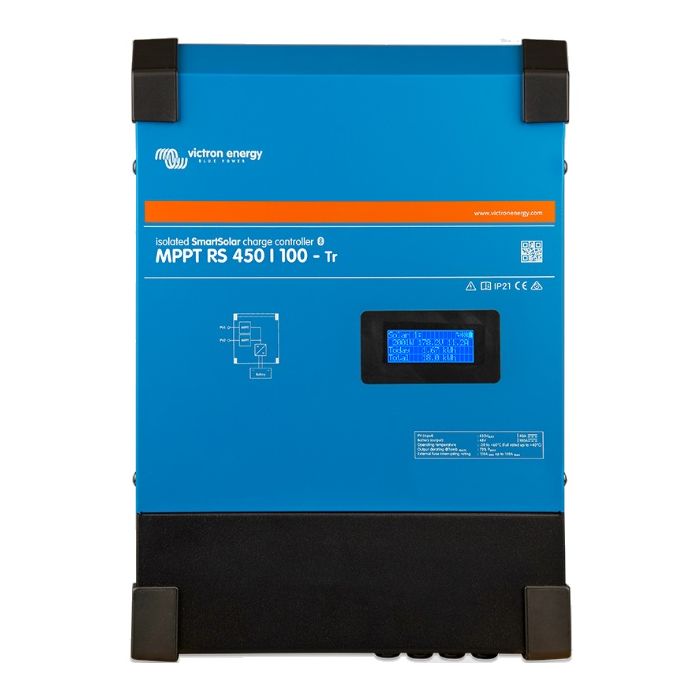

Victron Energy SmartSolar MPPT RS Charging Controller - 450/100-Tr VE.Can
R23,849.00
SKU
5001000073
Multiple independent MPPT tracking inputs
Isolated PV connections for additional safety
Wide MPPT voltage range
Light weight, efficient and quiet
Manufacturer's Website
Description
The Victron Energy SmartSolar MPPT RS Charging Controller - 450/100-Tr VE.Can are Victron's solution for systems with large series connected PV arrays charging 48 V DC battery banks. This product is perfect for large off-grid, and grid connected battery systems.
It includes a wide 80-450 VDC operating solar voltage input, independent tracking inputs, full connectivity, isolated PV connections, display screen, fully programmable battery charging parameters and active cooling. The new metal case design and fully covered electrical connections improve the safety and modernise the presentation in line with the latest suite of Victron products.
Features
- Ultra-fast maximum PowerPoint tracking (MPPT) solar charge controller
- Multiple independent MPPT tracking inputs
- Isolated PV connections for additional safety
- Wide MPPT voltage range
- Light weight, efficient and quiet
- PV isolation resistance monitoring for peace of mind at higher voltages
- Ve.can and ve.direct port
- I/o connections
Specifications
| Battery Voltage | 48 V |
| Rated Charge Current | 100 A |
| Maximum Charge Power | 5,8 kW at 57,6 V |
| Charge Voltage 'Absorption | Default setting: 57,6 V (adjustable) |
| Charge Voltage 'Float' | Default setting: 55,2 V (adjustable) |
| Programmable Voltage Range | Minimum: 36 V |
| Maximum | 60 V (7) |
| Charge Algorithm | Multi-stage adaptive (adjustable) |
| Battery Temperature Sensor | Included |
| Maximum Efficiency | 96 % |
| Self-Consumption | 15 mA |
| Solar | |
| Maximum Dc Pv Voltage | 450 V |
| Start-Up Voltage | 120 V |
| Mppt Operating Voltage Range | 80 - 450 V (1) |
| Number Of Trackers | 2 |
| Max. Pv Operational Input Current | 18 A per tracker |
| Max. Pv Short Circuit Current (2) | 20 A per tracker |
| Max. Dc Output Charging Power | 4000 W per tracker 5760 W total |
| Maximum Pv Array Size Per Tracker (3) | 7200 Wp (450 V x 20 A) (3) |
| Pv Isolation Fail Level (4) | 100 k |
| General | |
| Synchronised Parallel Operation | Yes, up to 25 units with VE.Can |
| Programmable Relay (5) | Yes |
| Protection | PV reverse polarity, Output short circuit, Over temperature |
| Data Communication | VE.Direct port, VE.Can port & Bluetooth (6) |
| Bluetooth Frequency | 2402 - 2480 MHz |
| Bluetooth Power | 4dBm |
| General Purpose Analogue/Digital In Port | Yes, 2x |
| Remote On-Off | Yes |
| Operating Temperature Range | -40 to +60 C (fan assisted cooling) |
| Humidity (Non-Condensing) | max 95 % |
| Enclosure | |
| Material & Colour | steel, blue RAL 5012 |
| Protection Category | IP21 |
| Battery-Connection | M8 bolts |
| Power Terminals Pv Input | 2 16 mm2 |
| Weight | 7.9 kg |
| Dimensions (H X W X D) In Mm | 440 x 313 x 126 |
| Free Shipping | No |
|---|
