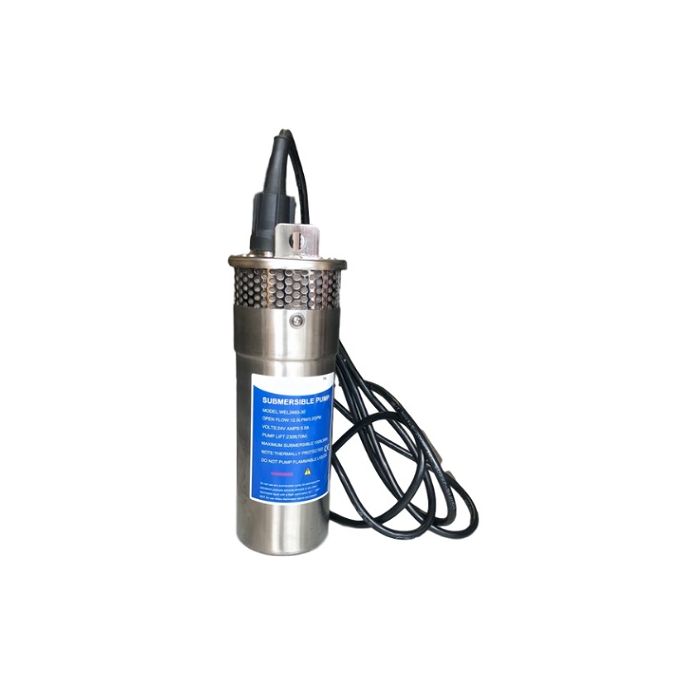

Waterhouse Borehole Solar Pump - 70m, 12 Volt
R7,499.00
SKU
XWEL126030Borehole
Thermally protected motor
Fully submersible
Used to extract water
Description
This Waterhouse Borehole Solar Pump - 70m, 12 Volt is used to extract water from a borehole. Designed to run directly off a solar setup. (Solar panel, voltage regulator, and battery). Pump and motor only.
Features
- Typically used in rural, off-grid borehole or well applications
- Total discard head, water depth, depth of submersed pump can not exceed 70m (total vertical lift)
- Use a minimum of a 130 watt solar panel together with a 10-20 amp controller with this pump
- This pump can run continuously for 3 hours as there is a clean 12 volt supply
- Thermally Protected motor
- 3 Chamber Diaphragm Positive Displacement Pump
- Fully submersible
- Use 10 bar pressure rated piping
Specifications
| Min cable thickness requirement | 5,5 mm |
| Voltage | 12 volt DC |
| Total vertical lift | 70 m (100 psi) |
| Open Flow | 12 L/min (3,2GPH) |
| Outlet | 16 mm |
| Startup Amps | 10 amps |
| Max submersion depth | 30 m |
| Motor | Permanent Magnet |
| Free Shipping | No |
|---|
