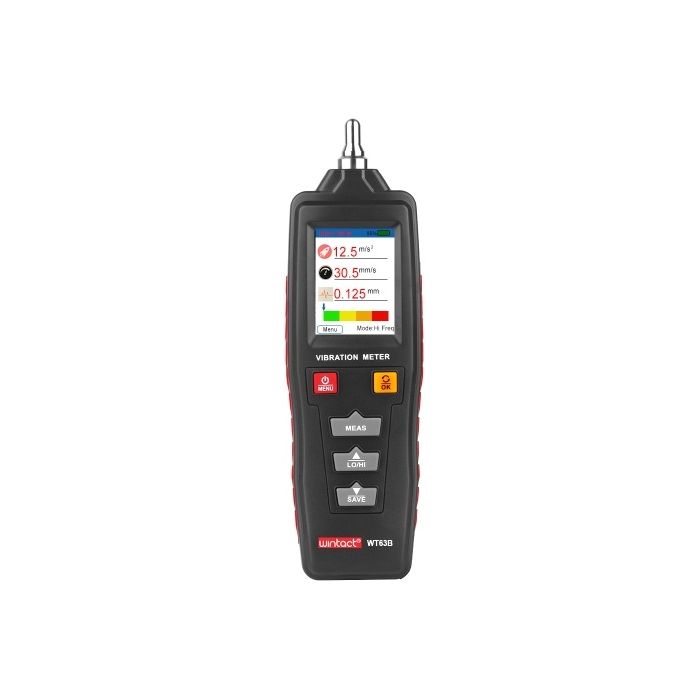

Wintact Vibration Meter
R6,299.00
SKU
WT63B
Full display Screen flipping Switch acceleration measurement between high and low frequency
Description
The Wintact Vibration Meter is based on piezoelectric effect of artificially polarized ceramics. It is suitable for conventional vibration measurement of mechanical equipment, especially for rotating and reciprocating machinery. It can measure vibration displacement, velocity and acceleration, and is widely used in fields like machinery manufacturing, electric metallurgy and general aerospace.
Features
- Full display
- Screen flipping
- Switch acceleration measurement between high and low frequency
- Store and view files
- Power indicator
- Double measurement button
- Flashlight
- Screen brightness
- Select Chinese/English
- Shutdown time setting Machinery grade
Specifications
| Vibration acquisition | Piezoelectric ceramic accelerometer (shear type) |
| Measurement range | Acceleration0.1199.9m/s2 Velocity0.1199.9mm/s Displacement0.0011.999mm |
| Measurement accuracy | Vibration displacement0.010.02mm, 10%. 0.02mm,5% Vibration velocity02.0mm/s, 10%.2.0mm/s,5% Vibration acceleration02.0m/s2, 10%.2.0m/s2,5% |
| Frequency range of acceleration measurement | High frequency Low frequency 1KHz-15KHz (HI) Low frequency20Hz-1KHz ( LO) |
| Frequency range of speed measurement | 20Hz-1KHz (LO) |
| Frequency range of displacement measurement | 20Hz-1KHz (LO) |
| LCD display | color display |
| Shuffle interval of data display | 1 second |
| Maximum groups of data storage | 7 groups |
| Power supply | 1.5V AAA battery x 2 |
| Temperature range for operation | 0-40C |
| Humidity range for operation | 30-90%RH |
| Size | 180x54x30mm |
| Weight | 250G(with batteries) |
| Free Shipping | No |
|---|
