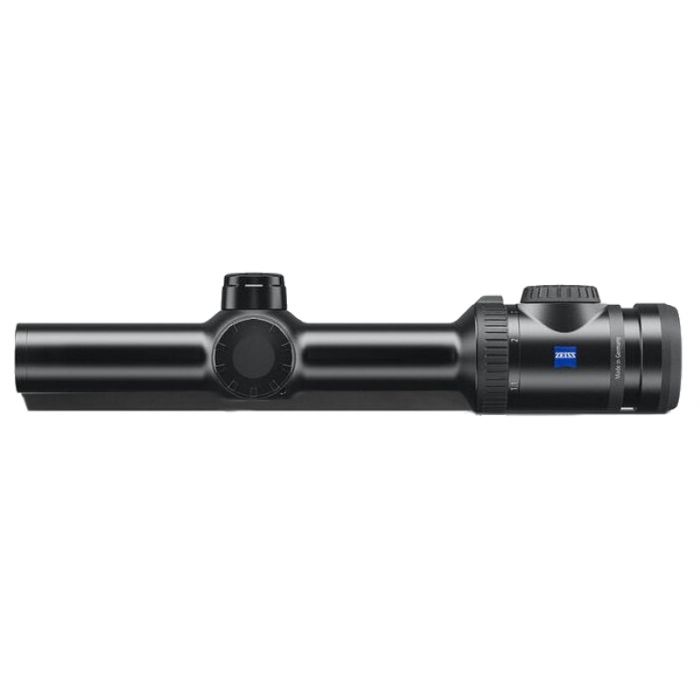

Zeiss V8 M 1.1-8x24 Rail Mount Riflescope - 54 Illuminated Reticle, Black

R58,749.00
SKU
5221009954000

Extra-large eyebox
1.1 Magnification
The world's finest illuminated dot
Brilliant image quality

Confirm Availability
In stock
Safe & Secure Shopping
Satisfaction Guaranteed

Manufacturer's Website





Description

The Zeiss V8 M 1.1-8x24 Rail Mount Riflescope - 54 Illuminated Reticle, Black is equipped for everyday hunting and deliver more successful moments on the hunt than any other riflescope from ZEISS thanks to the combination of sophisticated features and their perfect interaction. Outstanding optical quality, an extra-large eye box for fast target acquisition, and the finest illuminated dot in the world make it an unsurpassed companion in any hunting situation. For greater success during your hunt.

Maximum overview and visible comfort. The eye box of the ZEISS V8 1.1-8x24 is larger than the human pupil, maximizing the area in which the hunter sees the entire image. This gives them more room to position their eye and enables them to acquire targets much more quickly, a crucial advantage during driven hunts. Together with its 1.1x magnification, this means the ZEISS V8 1.1-8x24 is ideally suited for quick shots at close range

The driven hunt reticle 54 is another special reticle from ZEISS. This enhanced version of the reticle 0 is designed for fast and reliable shots with minimal target subtension. In addition to the fine horizontal bar, it features crosshairs containing the ultra-fine illuminated dot. The horizontal bar is used for height correction when following a target and protects against weapon tilting.

The crosshairs allow you to quickly shoulder your rifle and aim at the target, even without an illuminated dot. One look at the subtension reveals just how fine the illuminated dot is at 12x magnification, only 0.55 cm is covered at a distance of 100 m. The reticle is located in the riflescope's second image plane.



Features

  • Extra-large eyebox
  • 1.1 Magnification
  • The world's finest illuminated dot
  • Brilliant image quality
  • ZEISS T Coating
  • A clear view, whatever the weather
  • Stable and Shot-Proof
  • Multifunction Button
  • The most versatile riflescope
  • Confidence in the toughest conditions
  • Tenaciously Mobile
  • Hard shell and Hard core



Specifications

Magnification 1.1 8 x
Effective Lens Diameter 10.6 - 24 mm
Light Transmission 92%
Exit Pupil Diameter 9.9 3.1 mm
Reticle 54
Twilight Factor 3.4 13.9
Field Of View @ 100m (YDS) 39.6 5.4 m (119 16 ft)
Objective Viewing Angle 22.2 Degrees 3 Degrees
Diopter Adjustment Range 3.5, + 2 dpt
Eye Relief 92 mm (3.6")
Parallax Setting 100m (109 yds)
Vertical Adjustment Range @ 100m 500cm
Lateral Adjustment Range @ 100m 320cm
Adjustment Per Click @ 100 m 1cm
Centre Tube Diameter 30 mm
Eyepiece Tube Diameter 46 mm
Objective Tube Diameter 30 mm
Inner Rail Yes
Coating LotuTec
Nitrogen-filled Yes
Water Resistance 400 mbar
Physical Operating Temperature 25 C - + 50 C ( 13 F - +122 F)
Length 283 mm (11.1")
Weight (Without Inner Rail) 550 g (19.4 oz)
Weight (With Inner Rail) 590 g (20.8 oz)
