Hikvision DS-K2M060 Secure Door Control Unit

Be the first to review this product

R1,009.00

SKU

DSK2M060

Execute commands from the terminal Collects the door magnetic signal Exit button signal

Safe & Secure Shopping

Satisfaction Guaranteed

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Manufacturer's Website

Description

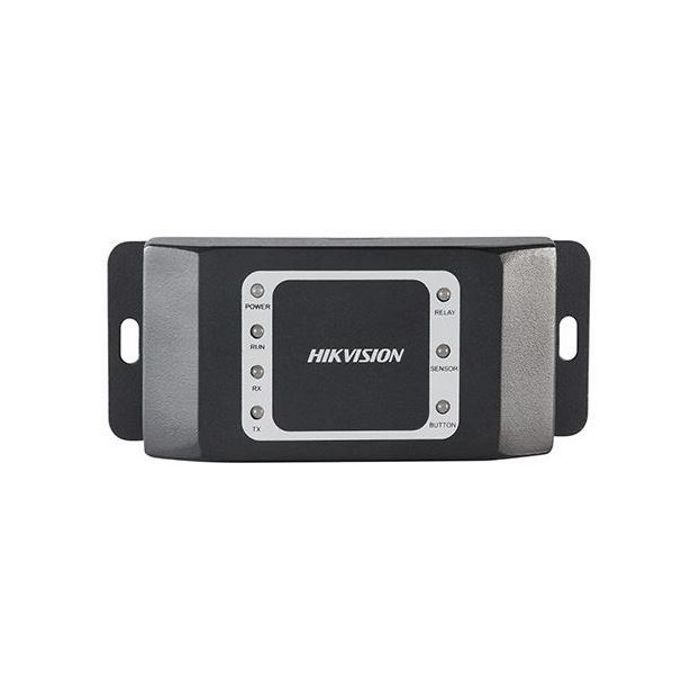

The Hikvision DS-K2M060 Secure Door Control Unit is the interlayer between the access control terminal and the lock, including the door magnetic, the lock, the exit button and so on. It can be applied to keep the door closed when the door is damaged.

Features

Communicates with the access control terminal via RS-485
Execute commands from the terminal
Open door, close door
Normally open and normally closed
Collects the door magnetic signal
Exit button signal
Tamper-proof signal and send them to the access control terminal
Supports tampering Alarm
Supports RS-485 communication
Indicators to show communication status
4-ch DIP switch supporting ID NO. configuration
Supports a Wiegand interface to connect a Wiegand card reader to enter/exit access control terminal by swiping card

Specifications

Brand	Hikvision
Device Interfaces
Communication Mode	RS-485
Output Interface	Lock x 1, Alarm Out x 1
Input Interface	Exit Button x 1, Door Magnetic x 1, and Wiegand x 1
General
Power Supply	12VDC
Indicator	7 Indicators (RS-485 Communication Status x 2, Power Supply x 1, Exit Button x 1, Lock Status x 1, Door Magnetic x 1 and Running Status x 1)
Installation	Wall Mounting
Working Humidity	10% to 90% (Non-Condensing)
Working Temperature	-30°C to +55°C
Dimensions	48 × 115 × 25 mm
