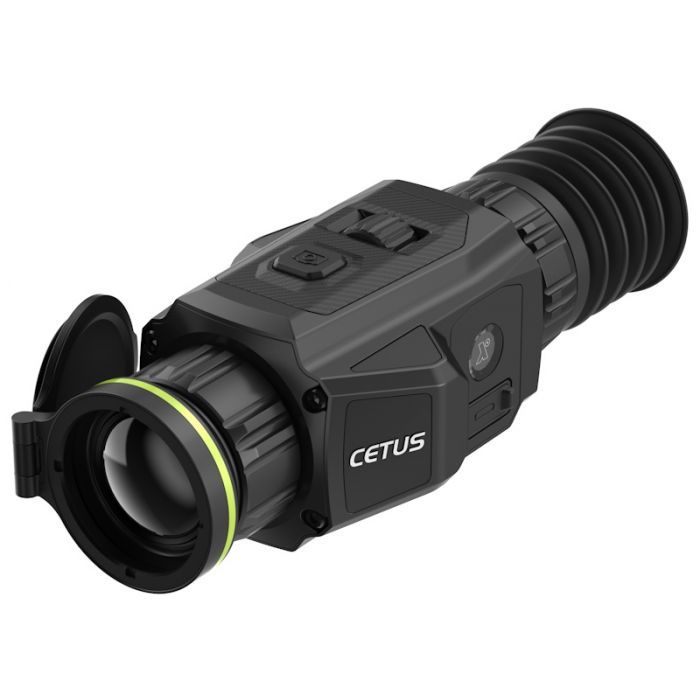

Pixfra Cetus C225 Compact Thermal Riflescope
R19,999.00
SKU
PFI-CT225
256x192 Sensor Resolution
1,300 m Detection Range
3.5x Magnification
-/<18 mK at f/1.0 NETD
Description
Introducing the Pixfra Cetus C225 Compact Thermal Riflescope. The Pixfra Cetus C225 Compact Thermal Riflescope is a highly advanced and portable thermal imaging device designed for a wide range of applications, from hunting and surveillance to security and search operations. Its compact and minimalist design allows for easy handling and quick deployment, making it an ideal choice for users who require a high-performance thermal imaging system without the bulk. The device features a high-resolution 0.32-inch OLED display, offering a clear and crisp image with 6 customisable colour palettes, including White Hot, Black Hot, Iron Red, Alarm, Green Hot, and Sepia.
One of the key benefits of the Pixfra Cetus C225 is its impressive battery life, with up to 5 hours of operation at 25C when Wi-Fi is turned off. The built-in 64GB storage capacity allows for extensive recording and storage of thermal images and video, making it an ideal choice for users who require a reliable and long-lasting thermal imaging system. The device's quick-release mounting system and press-type 18650 battery cover also make it easy to swap out batteries and attach/detach the device from a rifle or other mounting platform.
The Pixfra Cetus C225 features advanced PIPS 3.0 technology, which provides high-speed processing and image enhancement capabilities. This allows for rapid target acquisition and accurate temperature measurement, even in complex environments. The device's full magnesium alloy construction provides exceptional durability and resistance to impact, making it a reliable choice for users who operate in challenging environments.
The thermal detector used in the Pixfra Cetus C225 is a vanadium oxide uncooled focal plane detector, which offers high sensitivity and rapid temperature measurement. With an effective pixel count of 256 (H) x 192 (V) and a pixel pitch of 12 m, the detector provides high-resolution thermal imaging capabilities. The device's spectral range of 8-14 m and sensitivity of <18 mK at f/1.0 make it an ideal choice for a wide range of thermal imaging applications. The 25mm focal length and F1.0 aperture also provide a clear and crisp image, even in challenging environments.
Features
- 6 Colour Palettes (White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia)
- 800 x 600, 0.32 inch, OLED
- Up to 5h at 25 C (Wi-Fi off) Max Battery Life
- Built-in 64GB Storage
- Minimalist and compact design
- Press type 18650 battery cover
- Quick-release mounting system
- PIPS 3.0 technology
- Full magnesium alloy construction
- New customisable zeroing profile name
- Track-style design screen with 17x ocular lens
Specifications
| Brand | Pixfra |
| Thermal | |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 256 (H) x 192 (V) |
| Pixel Pitch | 12 um |
| Spectral Range | 8 um-14 um |
| Sensitivity (NETD) | -/<18 mK at f/1.0 |
| Focal Length | 25 mm |
| Aperture | F1.0 |
| Field of View | H: 7.0, V: 5.3/H: 12.4 m, V: 9.2 m (at 100 m) |
| Focus Control | Manual |
| Close Focus Distance | 3 m |
| Detection Distance | 1,300 m |
| Base Magnification | 3.5x |
| Digital Zoom | 1x-8x |
| Display | |
| Screen Size | 800 (H) x 600 (V), 0.32 inch, OLED |
| Color Palettes | White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia |
| Eye Relief | 45mm |
| Diopter | -5 D to 5 D |
| Function | |
| Video Recorder | Yes |
| Snapshot | Yes |
| Wi-Fi Hotspot | Yes |
| Hot Spot Track | Yes |
| FFC Calibration | Auto, Manual, Semi-Auto |
| Standby Mode | Yes |
| DPC (Defective Pixel Correction) | Yes |
| MIC | Yes |
| PIP | Yes |
| Local Album | Yes |
| Storage | Built-in 64GB |
| PIPS 3.0 | Yes |
| Reticle | Multiple Patterns & Colour Options |
| Zeroing Profile | 5 |
| Max. Recoil | 1000g/0.4ms |
| Power | |
| Battery Type | Replaceable 18650 Lithium battery |
| Battery Operating Time | >/-5 h at 25 C (Wi-Fi off) |
| Power Supply | 5 VDC |
| USB | USB Type-C |
| General | |
| Operating Temperature | -30C to 55C (-22F to 131F) |
| Operating Humidity | -/<95% |
| Protection Grade | IP67 |
| Packaging Dimensions | 298.0 mm x 192.0 mm x 147.5 mm |
| Product Dimensions | 198.4 mm x 81.5 mm x 66.8 mm |
| Net Weight | 0.52 kg |
| Gross Weight | -/<2.0 kg |
| Free Shipping | No |
|---|
