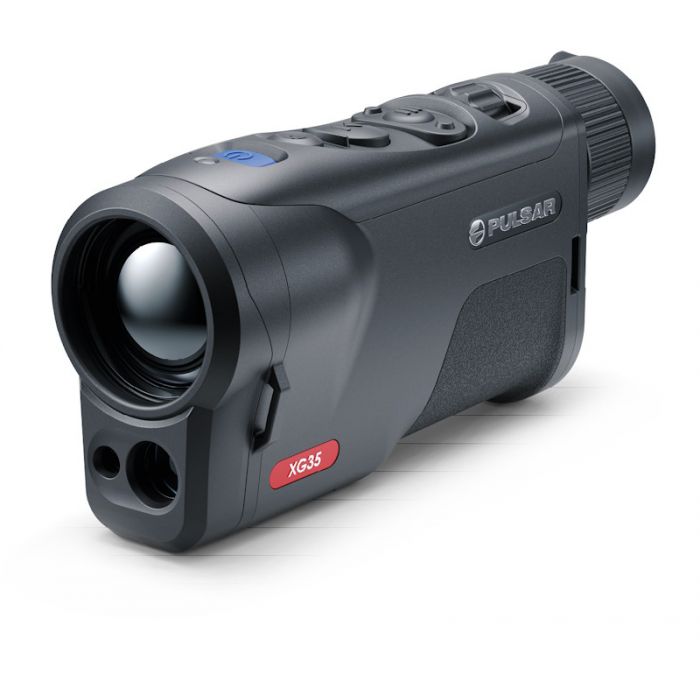

Pulsar Oryx XG35 LRF Thermal Monocular
R47,499.00
SKU
77504
640x480 Sensor Resolution
1800m Detection Range
2.5-20x (x8 digital zoom) Magnification
< 20 System NETD
Description
Introducing the Pulsar Oryx XG35 LRF Thermal Monocular. The Pulsar Oryx XG35 LRF Thermal Monocular is a cutting-edge optical device designed for long-range thermal imaging with precision and durability. Crafted from high-quality magnesium alloy, it combines robustness with a lightweight design, weighing only 0.5 kg and measuring 179 x 52 x 77 mm, making it highly portable and suitable for various outdoor activities. Its IP67 waterproof rating ensures reliable performance in challenging weather conditions, from rain to dust, allowing users to operate confidently in diverse environments. Operating efficiently within a temperature range of -25C to +40C, the Oryx XG35 is built to withstand extreme conditions, whether in tactical missions, hunting, or outdoor surveillance.
At the heart of this monocular is a high-resolution uncooled sensor with a 640x480 pixel array and a pixel pitch of 12 micrometers, offering exceptional sensitivity with NETD below 40 mK. This enables detailed thermal imaging at remarkable detection distances of up to 1800 meters, providing clear identification of targets in complete darkness or obscured conditions. The device features a 35mm objective lens with an F1.0 aperture, ensuring bright and sharp thermal images. Its variable magnification from 2.5x to 20x, combined with an 8x digital zoom, allows for flexible observation and precise long-range detection. The impressive AMOLED HD display, with a resolution of 1024 x 768 pixels, provides vivid and crisp thermal imagery. Users can select from nine different color palettes-such as White Hot, Black Hot, and Sepia-to optimize visibility based on operational needs or personal preference. The inclusion of auto brightness control and Picture-in-Picture (PiP) mode enhances user experience by maintaining image clarity and providing close-up views without losing situational awareness. Additionally, the laser rangefinder can measure distances up to 1500 meters with a precision of 1 meter, adding valuable data for tactical decision-making.
Connectivity features further elevate the Pulsar Oryx XG35s capabilities. With built-in Wi-Fi supporting IEEE 802.11 b/g/n/ac standards, users can easily stream live footage or transfer recordings via the Stream Vision 2 app on iOS and Android devices. The device offers both built-in 64GB storage and removable batteries-4900mAh for extended 12-hour operation-ensuring long-lasting performance in the field. Its USB-C port supports external power delivery, providing flexible recharging options. Whether for hunting, surveillance, or tactical use, the Pulsar Oryx XG35 combines advanced thermal imaging technology with rugged reliability and user-friendly features, making it a top-tier choice for professionals and outdoor enthusiasts alike.
Features
- 9 colour palettes
- 1024x768 AMOLED HD
- Up to 12h (built-in + removable) Max Battery Life
- Built-in 64GB Storage
- 3 sensitivity amplification levels
- Auto brightness control
- Picture-in-Picture (PiP) mode
- IP67 waterproof rated
- -25 to +40C operating temperature
- Magnesium alloy construction
Specifications
| Brand | Pulsar |
| Sensor | at 12 um 640x480 |
| Objective Lens | F35 / 1.0 |
| Magnification, X | 2.5 - 20 (x8 digital zoom) |
| Fov (Hxv) Degrees / M At 100M | 10.4 |
| Fov (Hxv), Degrees | 12.5x9.4 |
| Fov (Hxv), M At 100M | 21.9x12.5 |
| Detection Range | 1800 m |
| Sensor | |
| Type | uncooled |
| Resolution, Pixels | 640x480 |
| Pixel Pitch, Um | 12 |
| Sensor Netd, Mk | < 40 |
| System Netd, Mk | < 20 |
| Frame Rate, Hz | 50 |
| Optics | |
| Objective Lens | F35 / 1.0 |
| Magnification, X | 2.5 - 20 (x8 digital zoom) |
| Fov (Hxv) Degrees / M At 100M | 10.4 |
| Fov (Hxv), Degrees | 12.5x9.4 |
| Fov (Hxv), M At 100M | 21.9x12.5 |
| Eye Relief, Mm | 14 |
| Display | |
| Type | AMOLED HD |
| Resolution, Pixels | 1024x768 |
| Range Performance | |
| Detection Range, M | 1800 m |
| Laser Rangefinder | |
| Max. Measuring Range, M | 1500 |
| Measurement Accuracy, M | -/+ 1 |
| Safety Class For Laser Equipment According To Iec 60825-1:2014 | 1 |
| Wavelength, Nm | 905 |
| Video Recorder | |
| Video / Photo Resultion, Pixel | 1024x768 |
| Video / Photo Format | .mp4 / .jpg |
| Build-In Memory, Gb | 64 |
| Wi-Fi | |
| Wireless Protocol | Wi-Fi |
| Wireless Standard | IEEE 802.11 b/g/n/ac (WPA) |
| Frequency, Ghz | 2.4 / 5 |
| Environmental Characteristics | |
| Degree Of Protection Ip Code (Iec60529) | IP67 |
| Operating Temperature Range, | -25 - +40 |
| Connections And Compatibilities | |
| Mount Type | 1/4" socket |
| Supported Application | Stream Vision 2 |
| Power Supply | |
| Output Voltage, V | 3.0 - 4.2 |
| Battery Type | APS 5 Li-ion Battery Pack / 4900 mAh / DC 3.7 V (removable) & Li-Ion Battery Pack / 3200 mAh / DC 3.7 V (built-in) |
| Capacity, Mah | 4900 |
| Operating Time On Battery Pack, H At T22 | 12 (built-in + removable) |
| External Power Supply, V | 5V, 9V (USB Type-C Power Delivery) |
| Weight & Size | |
| Body Material | Magnesium alloy |
| Dimensions, Mm | 179x52x77 |
| Weight, Kg | 0.5 |
| Free Shipping | No |
|---|
