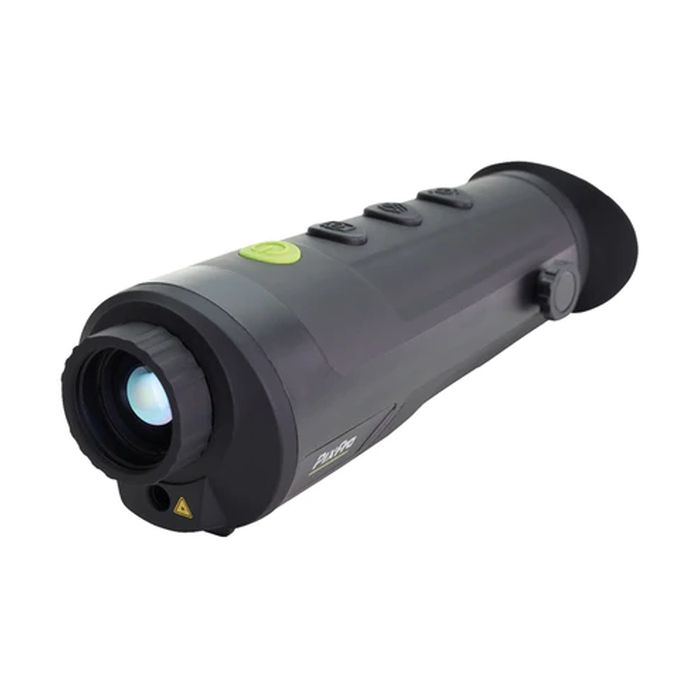

Pixfra Ranger R635 640x512 Thermal Imaging Monocular - 35mm, Black
R46,999.00
SKU
PFIR635
- Resolution 640x512
30 mK at f/1.0 Sensitivity
35mm Lens
6.5 hour Battery Life
Description
Introducing the Pixfra Ranger R635 640x512 Thermal Imaging Monocular - 35mm, Black, a compact and powerful monocular that offers exceptional image quality and versatility. With its impressive features and sleek design, the Pixfra ranger is equipped with high-resolution OLED, which brings the picture quality experience such as contrast and colour to a new level. The Pixfra Ranger R635 boasts a resolution of 640x512, ensuring sharp and detailed images that showcase more nuance and colour than ever before.
Designed for ease of use, the Pixfra Ranger R635 features intuitive controls and a user-friendly interface, allowing both beginners and experienced users to navigate its functions effortlessly. Ranger has a maximum 35mm lens, which can realize the detection distance of 1800m, helping you break through the visual boundary of human eyes at night. Supports white hot, black hot, alarm, iron red, jade, amber colour mode, to meet your observation needs in different scenarios.
Compact and lightweight, the Pixfra Ranger R635 is highly portable, making it an ideal companion. The Ranger series monocular is equipped with high-resolution OLED, which brings the picture quality experience such as contrast and colour to a new level. Compared with 1024×768 resolution, the 1440 x 1080 resolution display has doubled the number of pixels, making it clearer and more detailed.
Additionally, the Pixfra Ranger R635 is equipped with various convenient features, with more than 7.5 hours of battery life, manual and automatic standby mode, to meet your outdoor observation needs all day. With a IP67 protection rating, it can be used after soaking in water for half an hour. The minimum operating temperature is -30℃, which can follow you to harsh environments.
Features
- Vanadium oxide uncooled focal plane detector
- Ultra-low power consumption
- Detection distance is up to 1 800 m
- Connects to the mobile app through Wi-Fi
- Six colour palettes
- Built-in EMMC (32 GB)
- Connects to the external display
- Lightweight and portable
- IP67 rated
Specifications
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 640 (H) x 512 (V) |
| Pixel Pitch | 12 um |
| Spectral Range | 8 um - 14 um |
| Sensitivity (NETD) | <30 mK@f/1.0 |
| Frame Rate | 50 Hz |
| Focal Length | 35 mm |
| Field Of View | H: 12.4-Degrees, V: 10.0-Degrees |
| Focus Control | Manual |
| Close Focus Distance | 2 m (6.56 ft) |
| Aperture | F1.0 |
| Detection Distance | 1 800 m (5 905.51 ft) |
| Digital Zoom | 1 x 2 x 4 x 8 x |
| Colour Palettes | 6 (white hot/black hot/iron red/alarm/emerald/amber) |
| Display Screen Dimensions | 0.41 inch, OLED |
| Screen Resolution | 1440 (H) x 1080 (V) |
| Magnification | 2.05 x |
| Diopter Adjust | 4 D to +5 D |
| Eye Relief | 25 mm (0.98") |
| Storage Built-In | EMMC (32 GB) |
| Uniformity Correction | Auto, manual |
| Cold/Hot Spot Trace | Yes |
| Wi-Fi | Yes |
| Analogue Output | Yes. Type-C |
| Power Supply | 5 VDC/2 A, USB Type-C |
| Battery Type | 1 rechargeable Lithium batteries (internal) |
| Battery Capacity | 3 200 mAh |
| Overvoltage Protection | Yes |
| Standby Time | >6.5 h |
| Operating Temperature | 30 C to +50 C (22 F to +122 F) |
| Operating Humidity | <95% |
| Storage Temperature | 30 C to +65 C (22 F to +149 F) |
| Protection | IP67 |
| Product Dimensions | 199.8 mm x 64.7 mm x 69.6 mm (7.87" x 2.55" x 2.74") (L x W x H) |
| Packaging Dimensions | 299 mm x 152 mm x 114 mm (11.77" x 5.98" x 4.49") (L x W x H) |
| Net Weight | <400 g (0.88 lb) |
| Gross Weight | <1 kg (2.20 lb) |
| Free Shipping | No |
|---|
