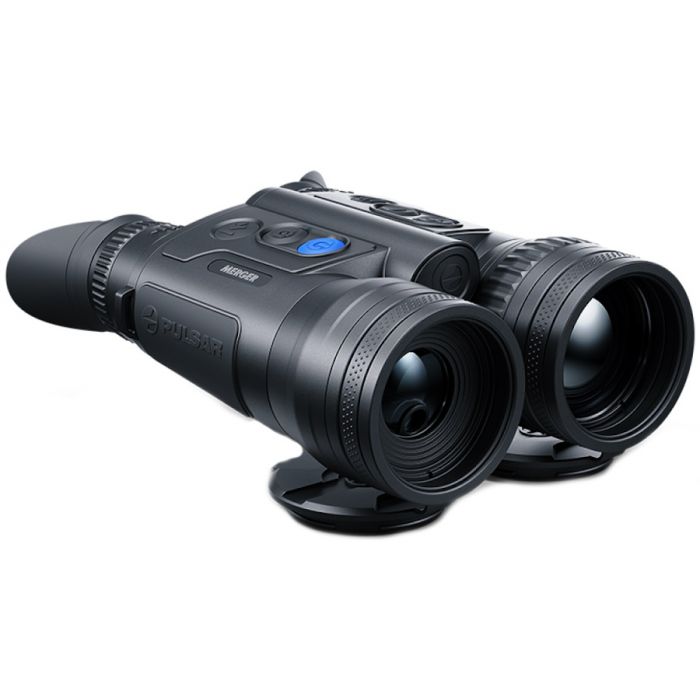

Pulsar Merger XL50 LRF Thermal Imaging Binoculars DEMO 2
1024x768 Sensor Resolution
2300m Detection Range
x2.5 - 20 Magnification
< 20 NETD


Description
Introducing the Pulsar Merger XL50 LRF Thermal Imaging Binoculars DEMO 2. The Pulsar Merger XL50 LRF Thermal Imaging Binoculars DEMO represent a cutting-edge piece of optical technology, designed to deliver unparalleled performance in various field applications, from wildlife observation to tactical operations. Equipped with up to eight customizable color palettes, these binoculars offer versatile viewing options tailored to different environments and user preferences. The high-resolution 1024x768 AMOLED HD display ensures that images are sharp, vibrant, and detailed, providing users with a clear view even in challenging conditions. The device's robust magnesium alloy housing not only adds durability but also ensures that it can withstand rigorous use, while the IPX7 submersion waterproof rating guarantees reliable performance in wet or adverse environments.
Powered by an advanced uncooled sensor with a pixel pitch of 12 m, the XL50 delivers exceptional thermal detection capabilities with a detection range of up to 2300 meters. The sensor's NETD rating of less than 40 mK, combined with a system NETD below 20 mK, ensures highly sensitive and precise thermal imaging, allowing users to detect even the slightest temperature variations. The binoculars feature a fast Germanium lens with an aperture of f/50 and a wide zoom range from 2.5x up to 20x, including an 8x digital zoom, providing flexibility for both close-up observations and long-distance detection. The field of view measures 14 x 10.5 degrees, with a practical coverage of approximately 24.6 by 18.5 meters at 100 meters, making it ideal for scanning large areas efficiently.
In addition to thermal imaging, the XL50 offers a variety of integrated features to enhance user experience. The built-in laser rangefinder can measure distances up to 1000 meters with an accuracy of 1 meter, adding valuable data for tactical or hunting scenarios. The device supports dual Wi-Fi wavebands (2.4 GHz and 5 GHz), enabling seamless streaming and connectivity with iOS and Android devices via Stream Vision 2. Users can effortlessly record high-definition photos and videos directly onto the 64 GB internal memory or stream live footage for real-time analysis. The proximity sensor allows for covert operation by automatically activating or deactivating the display when the binoculars are brought to or away from the eyes.
Designed for extended operational use, the Pulsar XL50 boasts an impressive battery life of up to 7 hours on a dual Li-Ion battery pack, with options for external USB power supplies. Its lightweight magnesium alloy construction, weighing just under 1 kilogram, makes it highly portable without sacrificing durability or performance. Whether used for night hunting, surveillance, or outdoor exploration, the Pulsar Merger XL50 LRF Thermal Imaging Binoculars combine advanced optics, robust build quality, and intelligent connectivity to meet the demanding needs of professional users and enthusiasts alike.
Features
- Up to 8 colour palettes
- 1024x768 amoled hd display
- Up to 7h of battery life
- 64gb built-in memory
- 3 levels of sensitivity amplification
- Rugged magnesium alloy housing
- Ipx7 submersion waterproof rated
- Dual wi-fi waveband support 2.4 / 5 ghz
- Stream vision 2. wi-fi integration with ios and android devices
- Built-in photo and video recorder
- Fast aperture f50/1.0 germanium lens
- Proximity sensor for covert use
Specifications
| Sensor | at 12 um 1024x768 |
| Objective lens | F50 / 1.0 |
| Magnification, x | 2.5 - 20 (x8 digital zoom) |
| FOV (HxV), degrees | 14 x 10.5 |
| FOV (HxV), m at 100m | 24.6 x 18.5 |
| Diopter Adjustment, D | -5/+4 |
| Detection range | 2300 m |
| Sensor | |
| Type | uncooled |
| Resolution, pixels | 1024x768 |
| Pixel pitch, um | 12 |
| Sensor NETD, mK | < 40 |
| System NETD, mK | < 20 |
| Frame rate, Hz | 50 |
| Optics | |
| Objective lens | F50 / 1.0 |
| Magnification, x | 2.5 - 20 (x8 digital zoom) |
| FOV (HxV), degrees | 14 x 10.5 |
| FOV (HxV), m at 100m | 24.6 x 18.5 |
| Diopter Adjustment, D | -5/+4 |
| Interpupillary distance adjustment, mm | 62 - 74 |
| Eye relief, mm | 15 |
| Display | |
| Type | AMOLED HD |
| Resolution, pixels | 1024x768 |
| Laser rangefinder | |
| Max. measuring range, m | 1000 |
| Measurement accuracy, m | -/+ 1 |
| Safety class for laser equipment | |
| according to IEC 60825-1:2014 | 1 |
| Wavelength, nm | 905 |
| Video recorder | |
| Video / photo resultion, pixel | 1024x768 |
| Video / photo format | .mp4 / .jpg |
| Build-in memory, GB | 64 |
| WI-FI | |
| Wireless protocol | Wi-Fi |
| Wireless standard | IEEE 802.11 b/g/n/ac (WPA) |
| Frequency, Ghz | 2.4 / 5 |
| Environmental characteristics | |
| Degree of protection IP code (IEC60529) | IPX7 (waterproof) |
| Operating temperature range, | -25 - +50 |
| Connections and compatibilities | |
| Mount type | 1/4" socket |
| Supported application | Stream Vision 2 |
| Power supply | |
| Output voltage, V | 3.7 |
| Battery type | |
| Dual Li-Ion Battery Pack | APS3 / 3200 mAh / DC 3.7 V (removable) and 4000 mAh / DC 3.7 V (built-in) |
| Capacity, mAh | 3200 (external) + 4000 (internal) |
| Operating time on battery pack, h at t22 | 7 |
| External power supply, V | 5V (USB type-C) |
| Weight & size | |
| Body material | Magnesium alloy |
| Dimensions, mm | 197x140x72 |
| Weight, kg | 0.95 (batteries included) |
